Stainless steel anchor for typical exterior use (pack of 20)

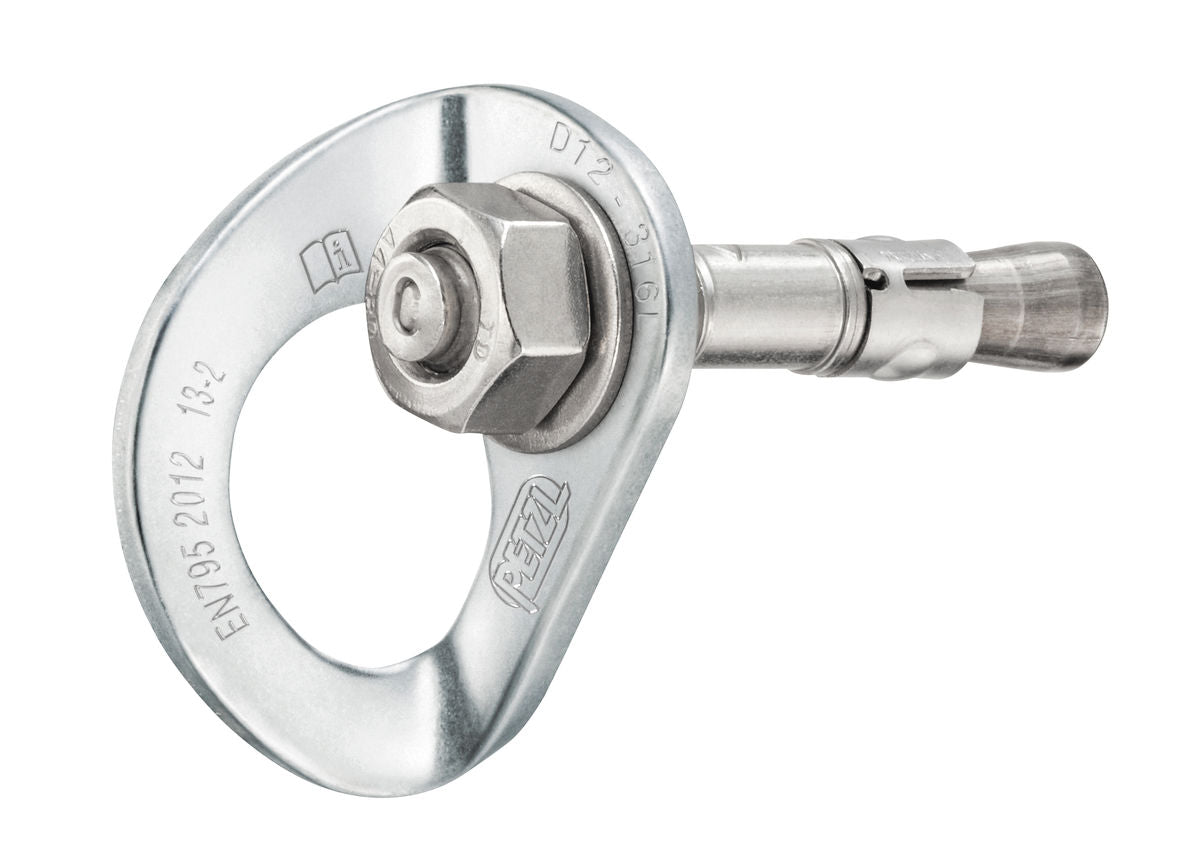

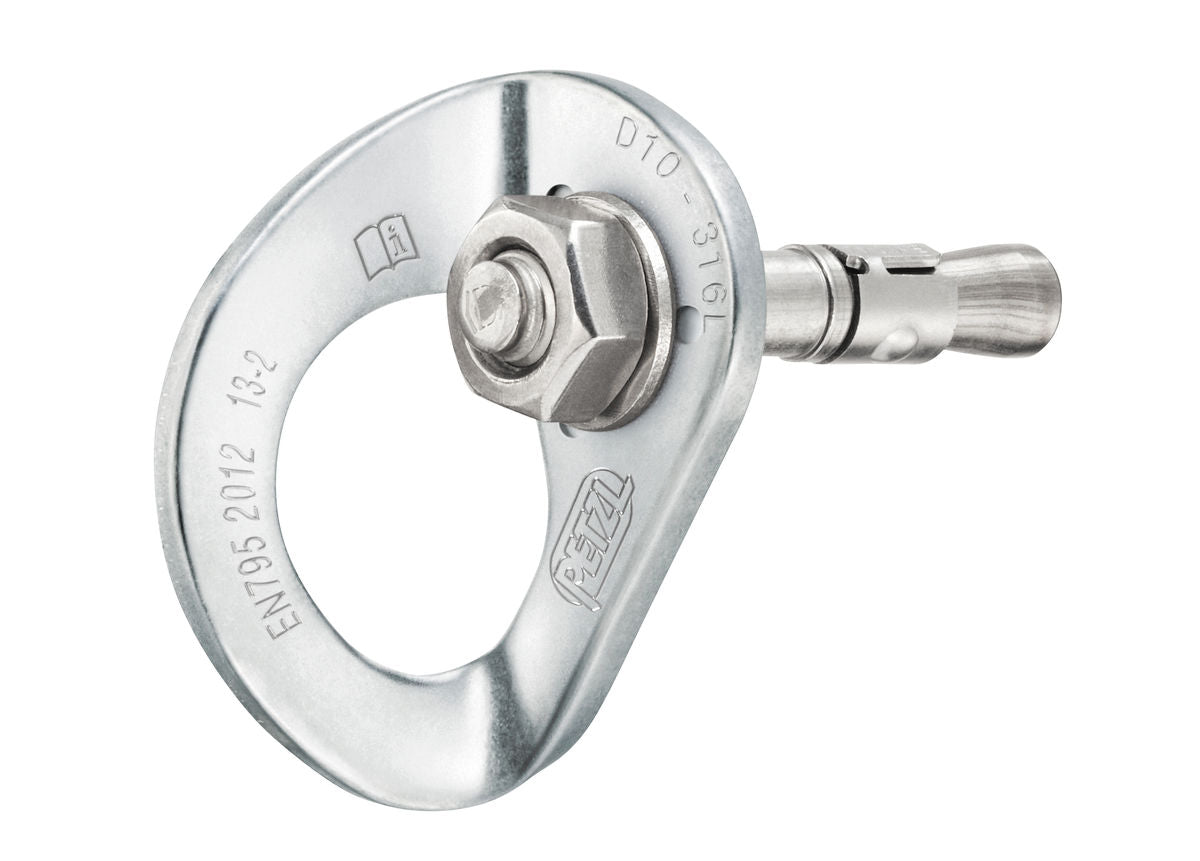

Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt, and a nut, and is designed for typical exterior use. It is available in 10 and 12 mm diameters.
- Complete and durable assembly:
- comprised of a COEUR STAINLESS hanger, nut and bolt
- 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
- hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Easy to clip:

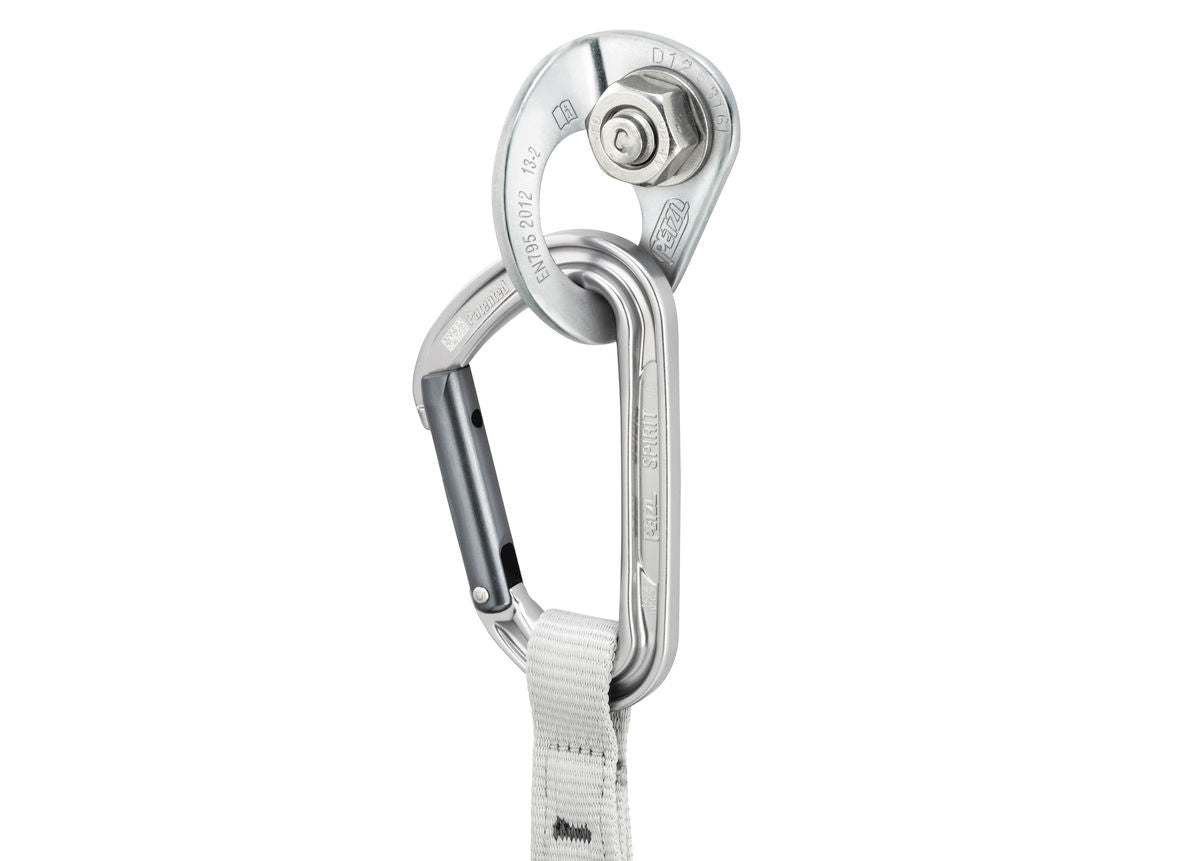

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
- Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
- Available in two bolt sizes (10 or 12 mm)
Specifications
- Material(s): 316L stainless steel
- Certification(s): EN 959
SKUs
| SKUs |
P36BS 10 |
P36BS 12 |
| Diameter |
10 mm |
12 mm |
| Weight |
110 g |
135 g |
| Drilling diameter |
10 mm |
12 mm |
| Total bolt length |
70 mm |
85 mm |
| Shear strength in 50 MPa concrete |
25 kN |
25 kN |
| Pull-out strength in concrete 50 MPa |
15 kN |
18 kN |
