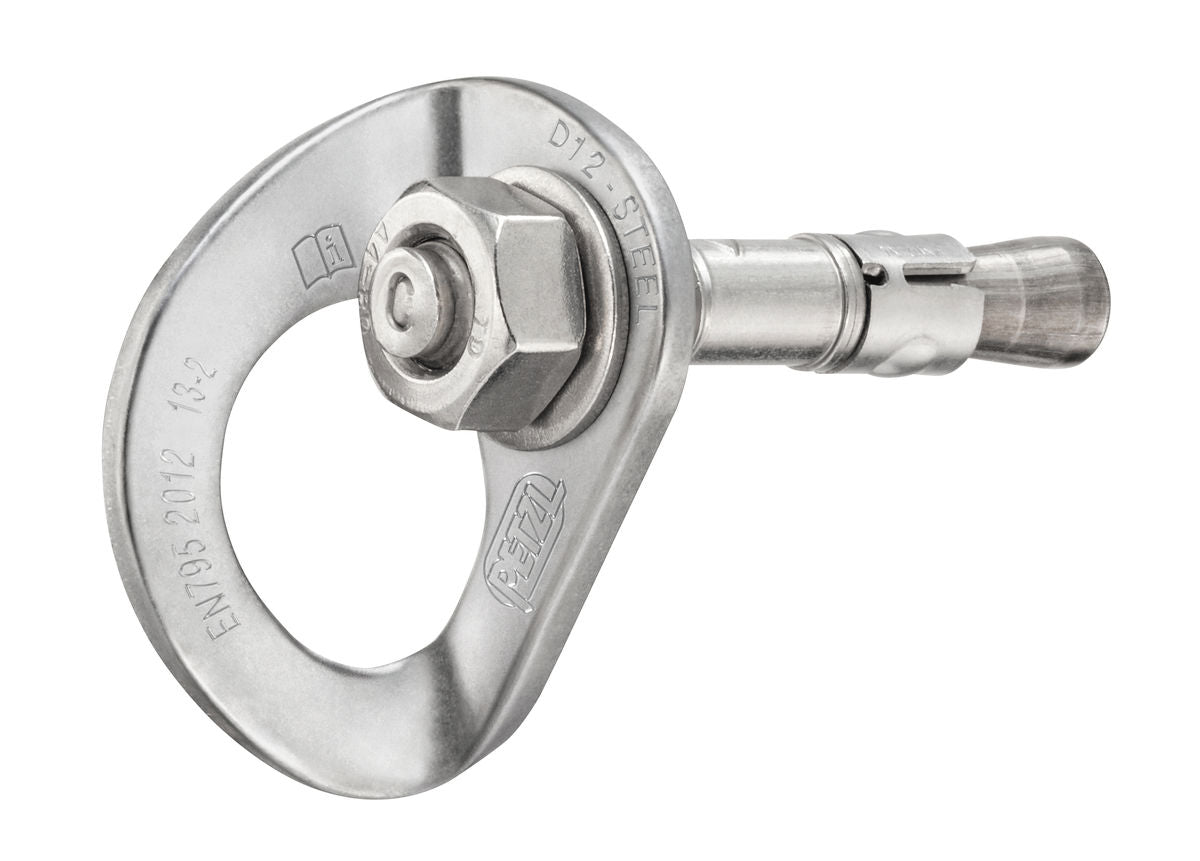

Steel anchor for interior use (pack of 20)
Steel anchor composed of a COEUR STEEL hanger, a bolt, and a nut, designed for interior use and available in 10 or 12 mm diameter.
- Complete and durable assembly:
- comprised of a COEUR STEEL hanger, nut and bolt
- made of steel, for interior use
- hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Easy to clip:
- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
- Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
- Available in two bolt sizes (10 or 12 mm)
Specifications
SKUs
| SKUs |
P36BA 10 |
P36BA 12 |
| Diameter |
10 mm |
12 mm |
| Certification(s) |
- |
EN 959 |
| Weight |
110 g |
135 g |
| Drilling diameter |
10 mm |
12 mm |
| Total bolt length |
85 mm |
105 mm |
| Shear strength in 50 MPa concrete |
23 kN |
25 kN |
| Pull-out strength in concrete 50 MPa |
15 kN |
18 kN |
