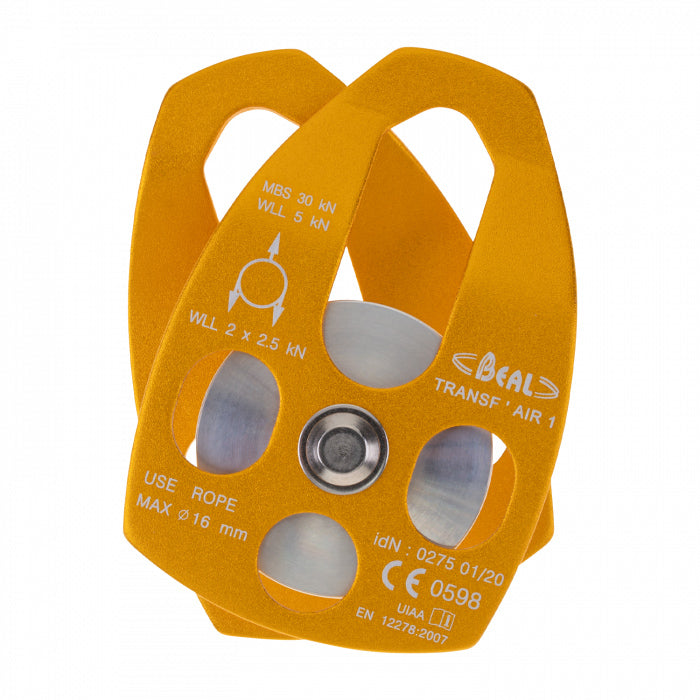

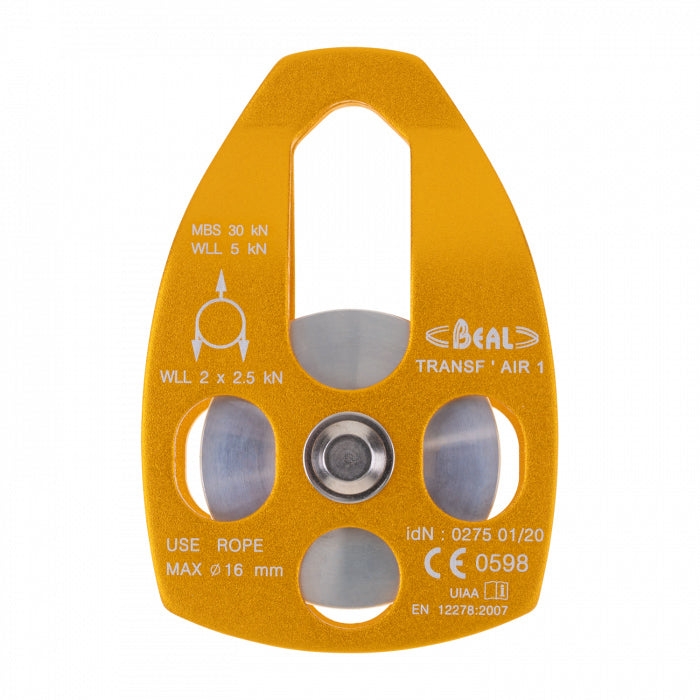

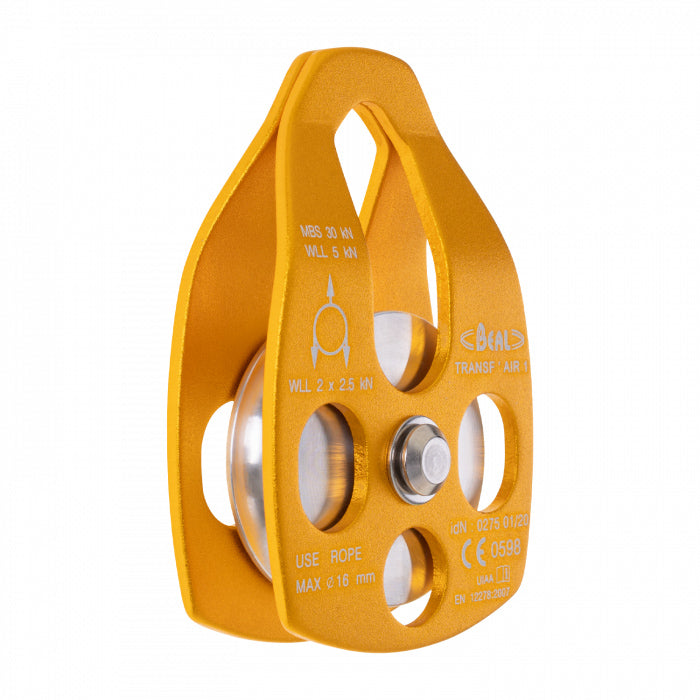

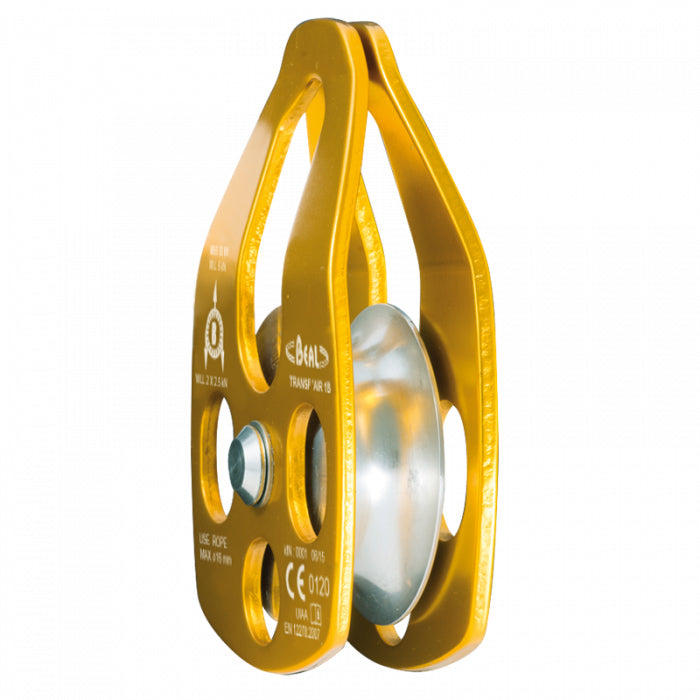

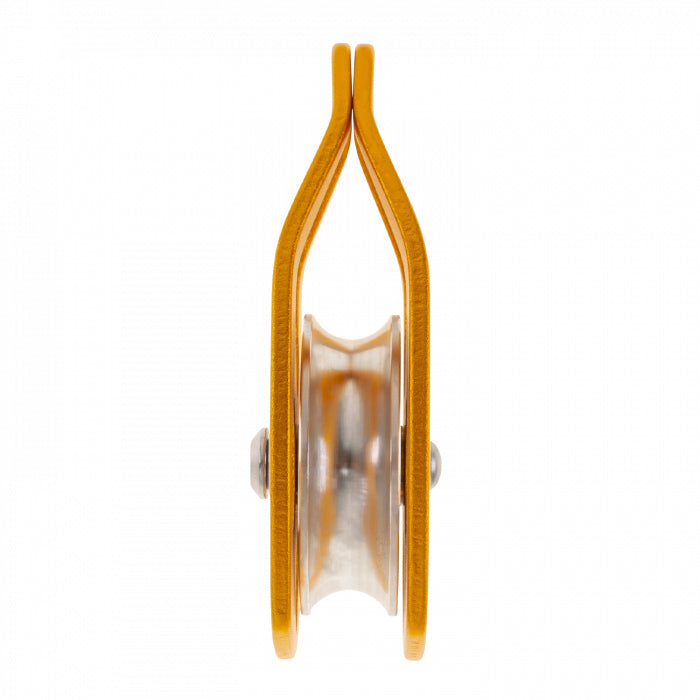

Single pulley with swivelling side plate ideal for large diameter ropes. Its swivelling action allows the pulley to be positioned anywhere along the rope. The sheave runs on a bronze bushing to ensure efficiency. Stainless steel axle and washers.
KEY FEATURES:
- Individual serial number.
- Swivelling side plate.
USES
- Pulley systems, load transfers.
| Specifications |
| Standard |
EN 12278 |
| Weight |
270 g |
| Material |
Aluminium |
| Certification |
CE |
| Compatible diameter |
max 16 mm |
| Maximum load |
MBS 30 kN |
| Sport Product |
Yes |
| Pro Product |
Yes |
| Family |
TRANSF1 |
