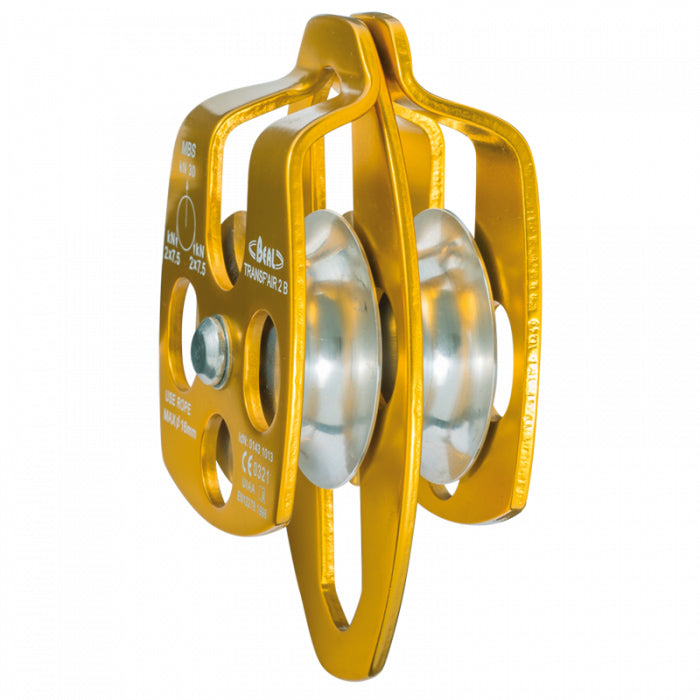

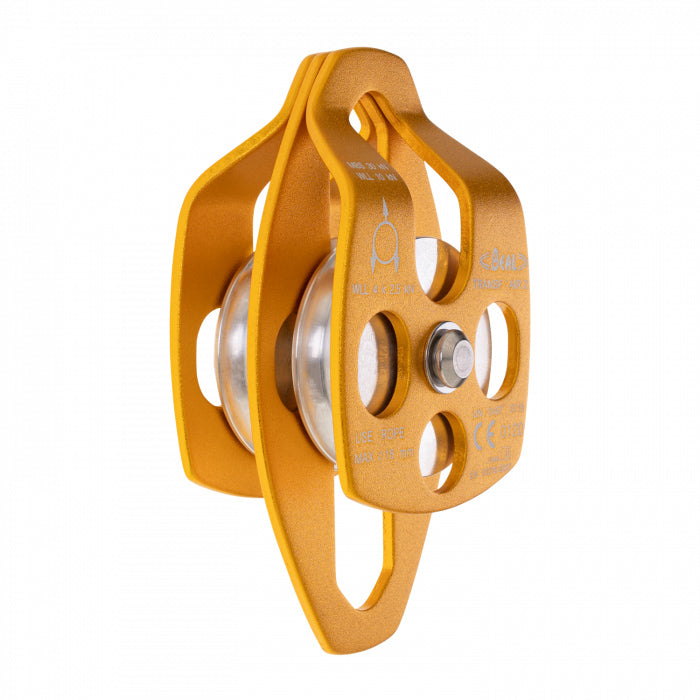

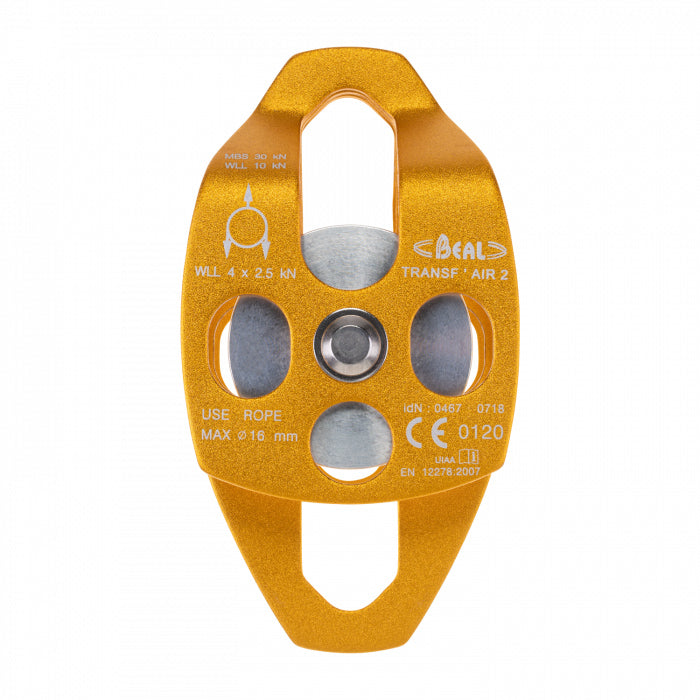

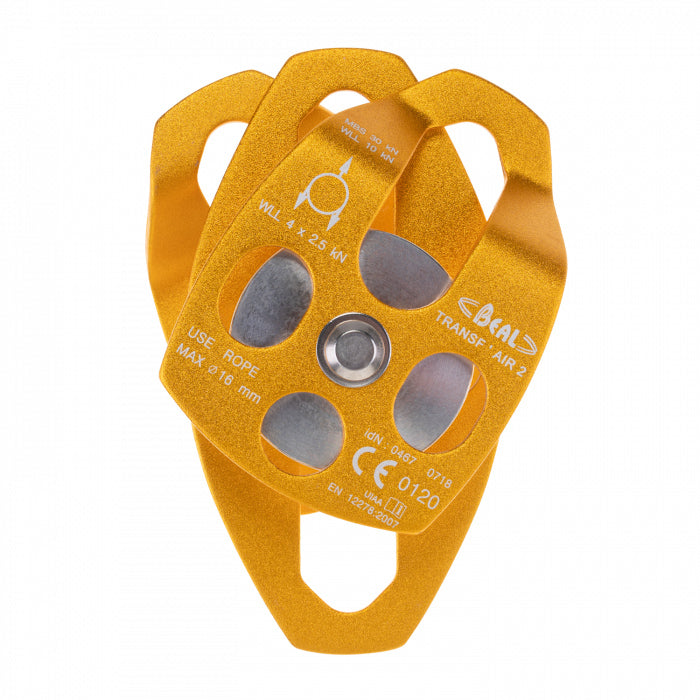

Double pulley with swivelling side plates, ideal for use with large diameter ropes.
Its swivelling action allows the pulley to be positioned anywhere along the rope.
The sheave runs on a bronze bushing to ensure efficiency.
Stainless steel axle and washers.
KEY FEATURES:
- Individual serial number.
- Swivelling side plate.
USES
- Pulley systems, load transfers.
| Specifications |
|
| Standard |
EN 12278 |
| Weight |
476 g |
| Material |
Aluminium |
| Certification |
CE |
| Compatible diameter |
max 16 mm |
| Maximum load |
MBS 30 kN |
| Sport Product |
Yes |
| Pro Product |
Yes |
| Family |
TRANSF2 |
