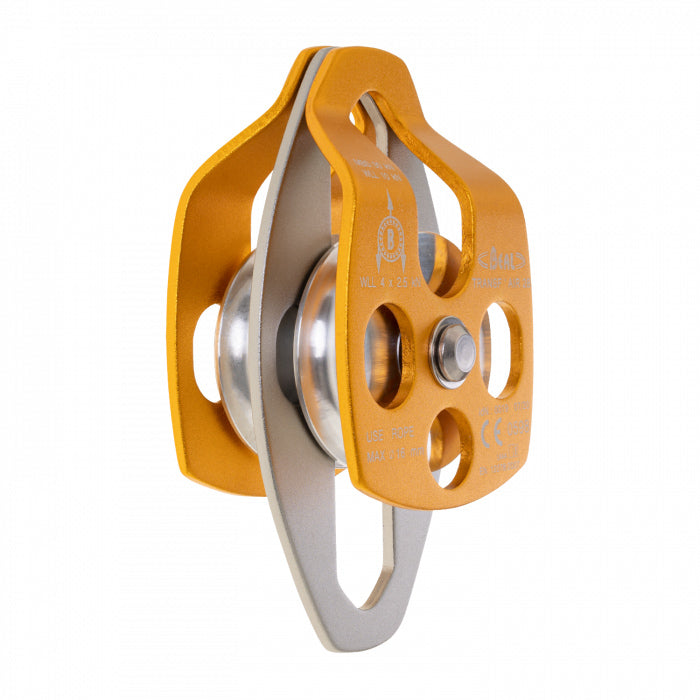

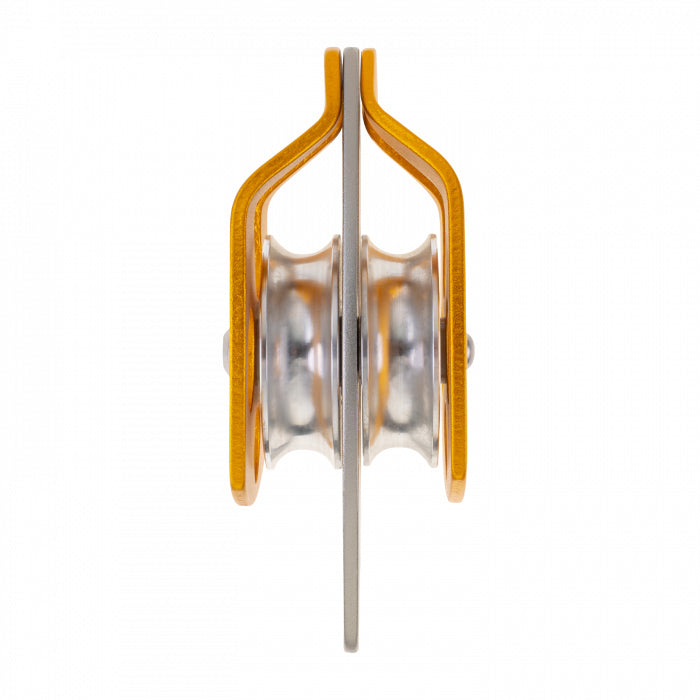

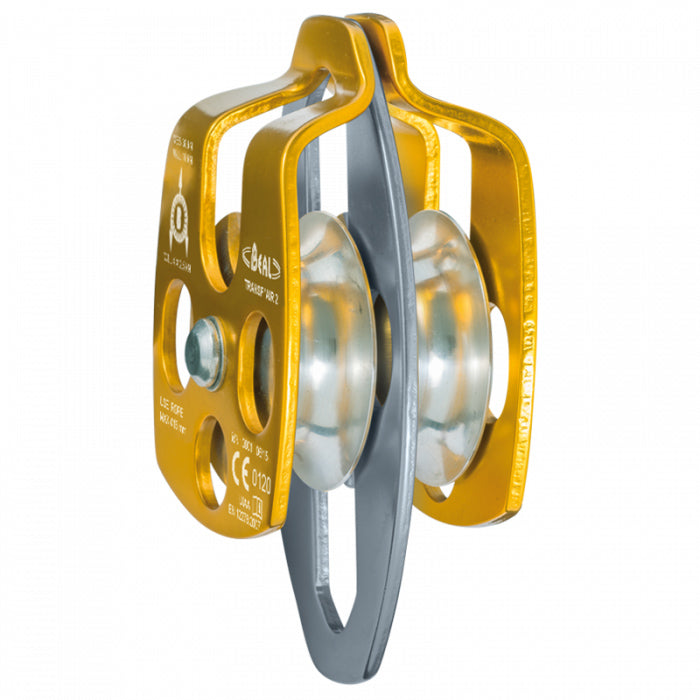

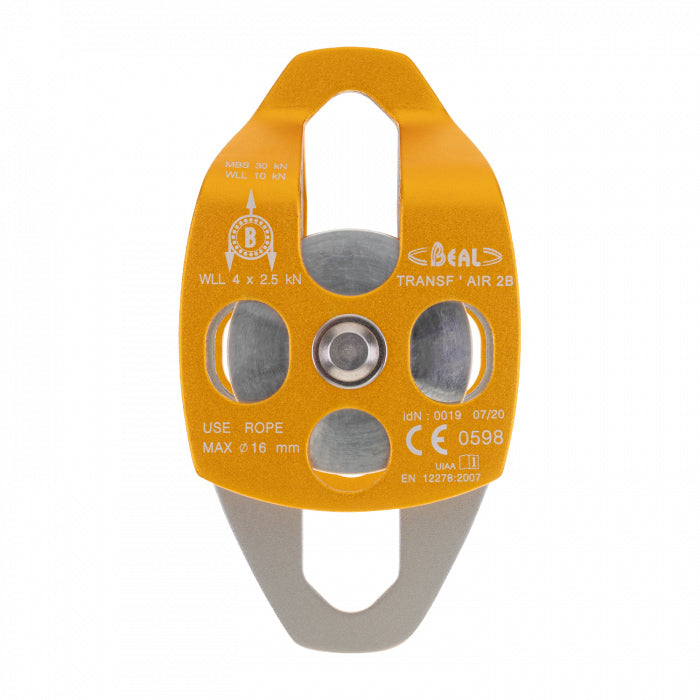

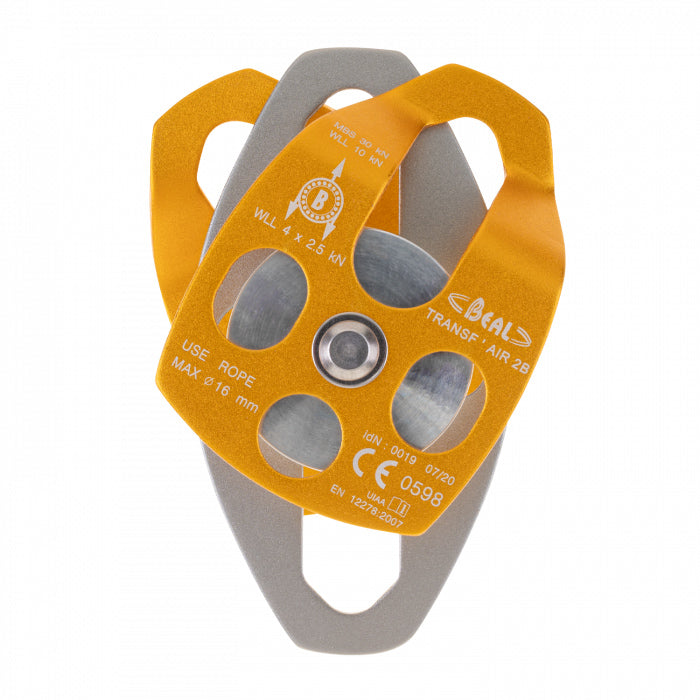

Highly efficient double pulley with swivelling side plates thanks to a ball bearing mounted sheave.
Its swivelling action allows the pulley to be positioned anywhere along the rope, whilst the ball bearings ensure maximum efficiency and durability. Ideal for intensive use with large ropes diameters. Stainless steel axle and washers.
KEY FEATURES:
- Ball bearings.
- Individual serial number.
- Swivelling side plate.
USES
- Intensive use in load transfers or pulley systems.
| Specifications |
| Standard |
EN 12278 |
| Weight |
500 g |
| Material |
Aluminium |
| Certification |
CE |
| Compatible diameter |
max 16 mm |
| Maximum load |
MBS 30 kN |
| Sport Product |
Yes |
| Pro Product |
Yes |
| Family |
TRANSF2B |
