Petzl

Am’D PIN-LOCK

Am’D PIN-LOCK

€29.00
€29.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Pack Size

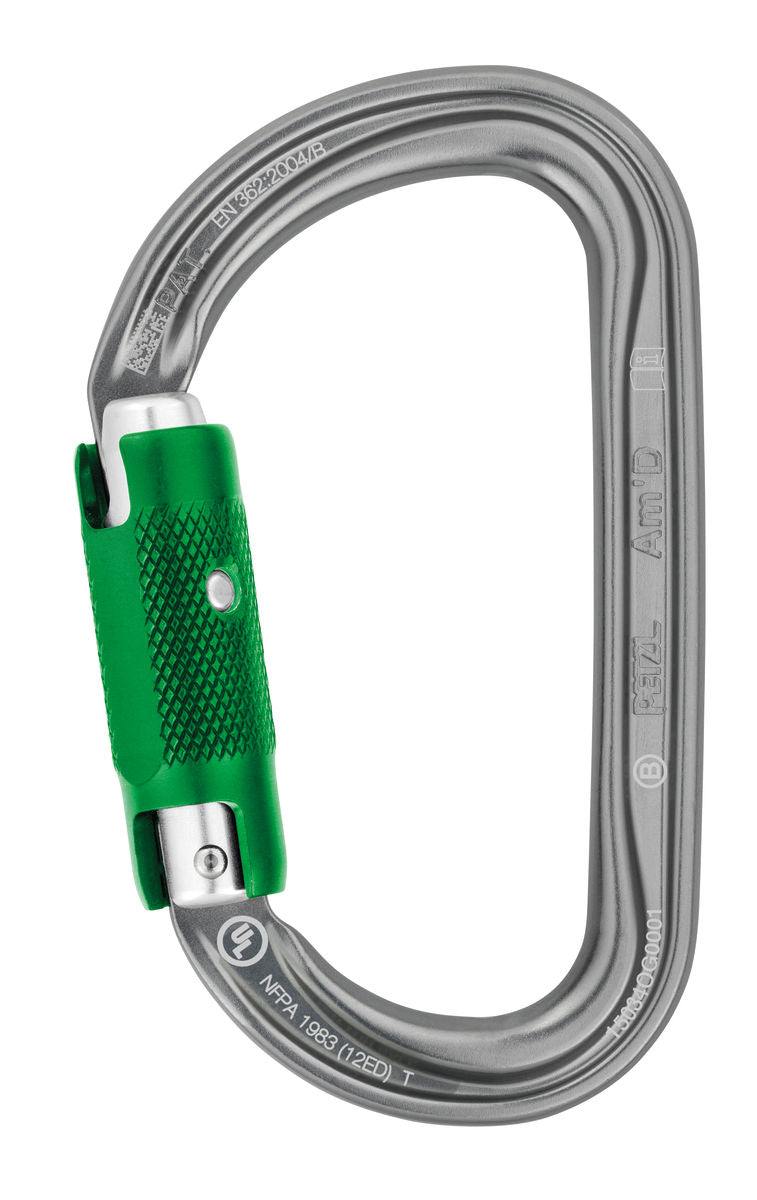

Asymmetrical aluminum carabiner, unlocks with a tool


The Am’D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the participant with a PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool.

  • Carabiner designed for use with groups:

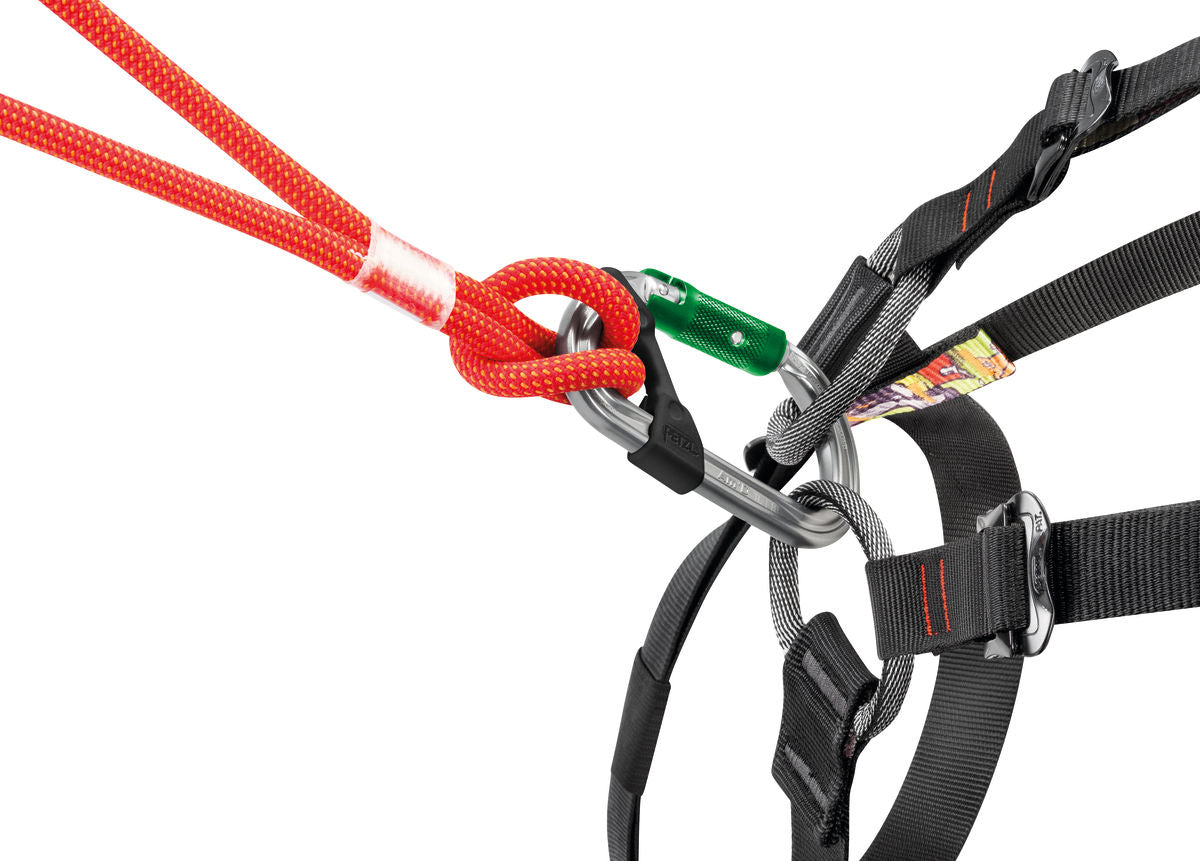

    - To fasten a SIMBA children’s harness (in combination with the CAPTIV positioning bar)
    - To connect a trolley to a continuous lifeline
  • Secures the connection of the participant:
    - May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of rotation, and to keep it integrated with the device
    - PIN-LOCK locking system can only be unlocked with a special tool, limiting the risk of the participant opening the carabiner
  • Easy for the operator to use:
    - Keylock system helps avoid any involuntary snagging of the carabiner

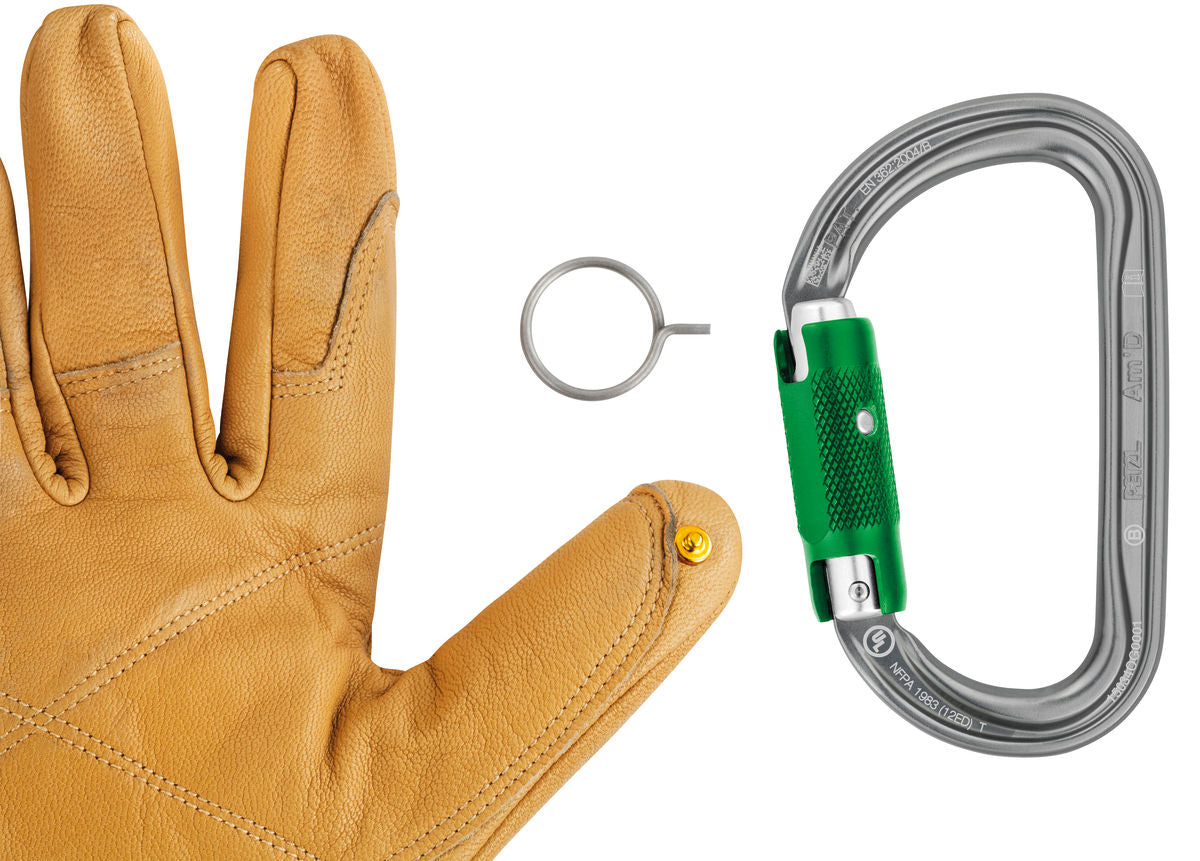

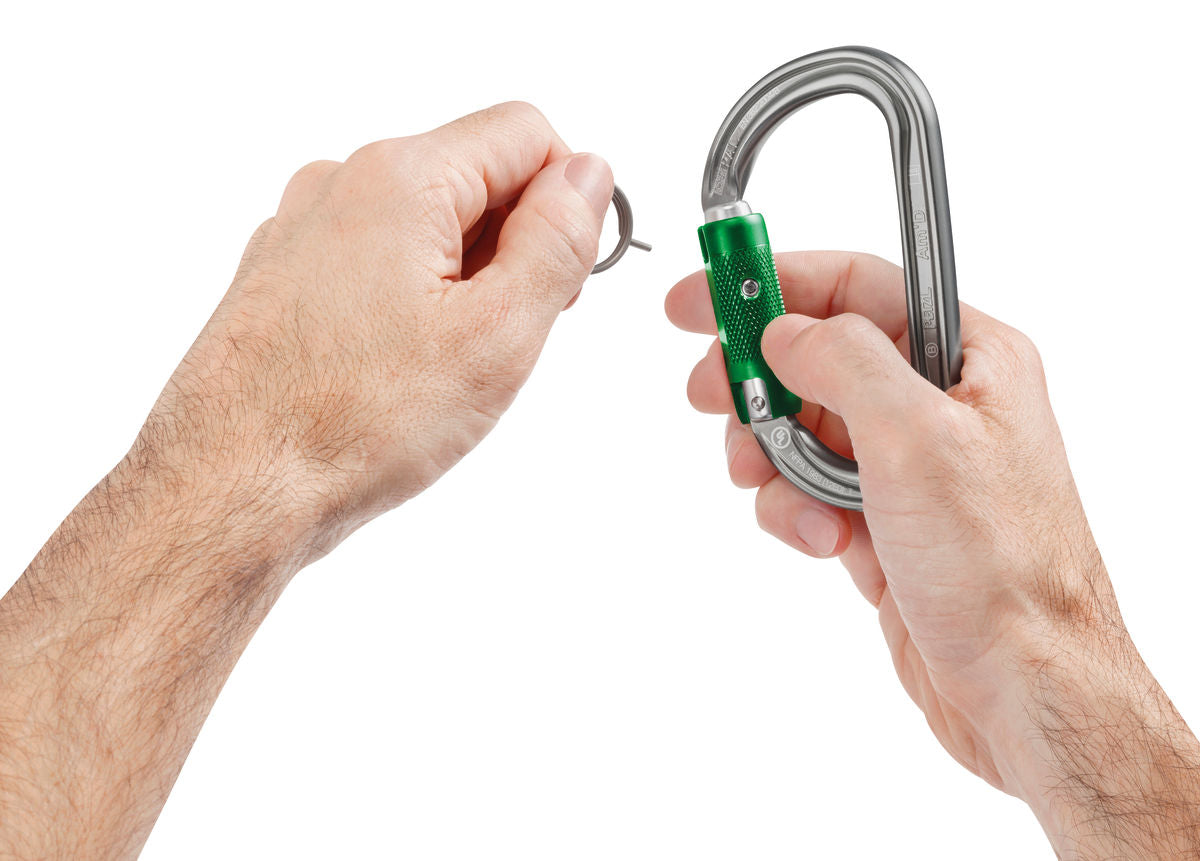

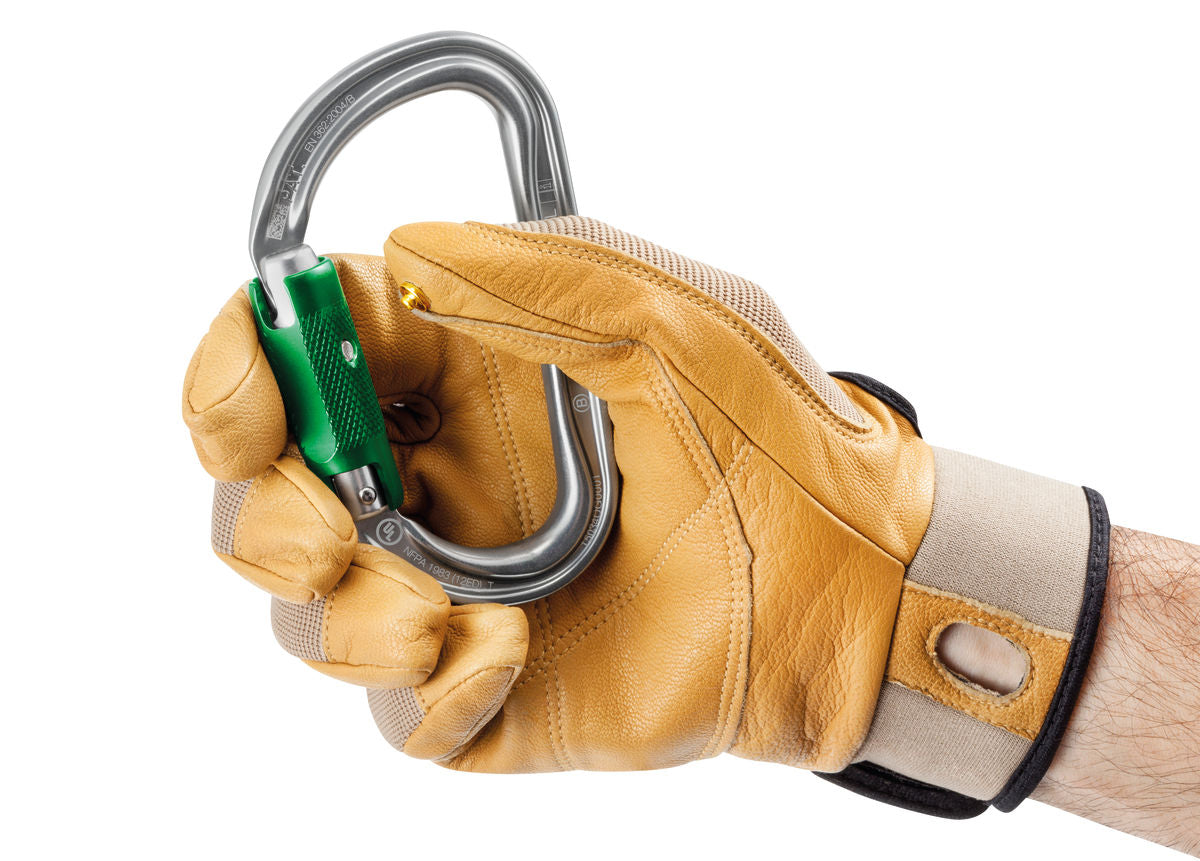

    - Comes with two unlocking tools: for repeated use, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness and used when the monitor is not wearing gloves
    - H-shaped cross-section protects markings from abrasion and provides improved strength-to-weight ratio
  • Sold in packs of 10 or individually

Specifications

  • Material(s): Aluminum
  • Certification(s): CE EN 362, CE EN 12275, EAC

Confugurations

SKUs M34A PL M34AB PL
Locking system PIN-LOCK PIN-LOCK
Inner Pack Count Sold individually Sold in packs of 10
Weight 80 g 800 g
Major axis strength 27 kN 27 kN
Minor axis strength 8 kN 8 kN
Open gate strength 7 kN 7 kN
Gate opening 25 mm 25 mm
