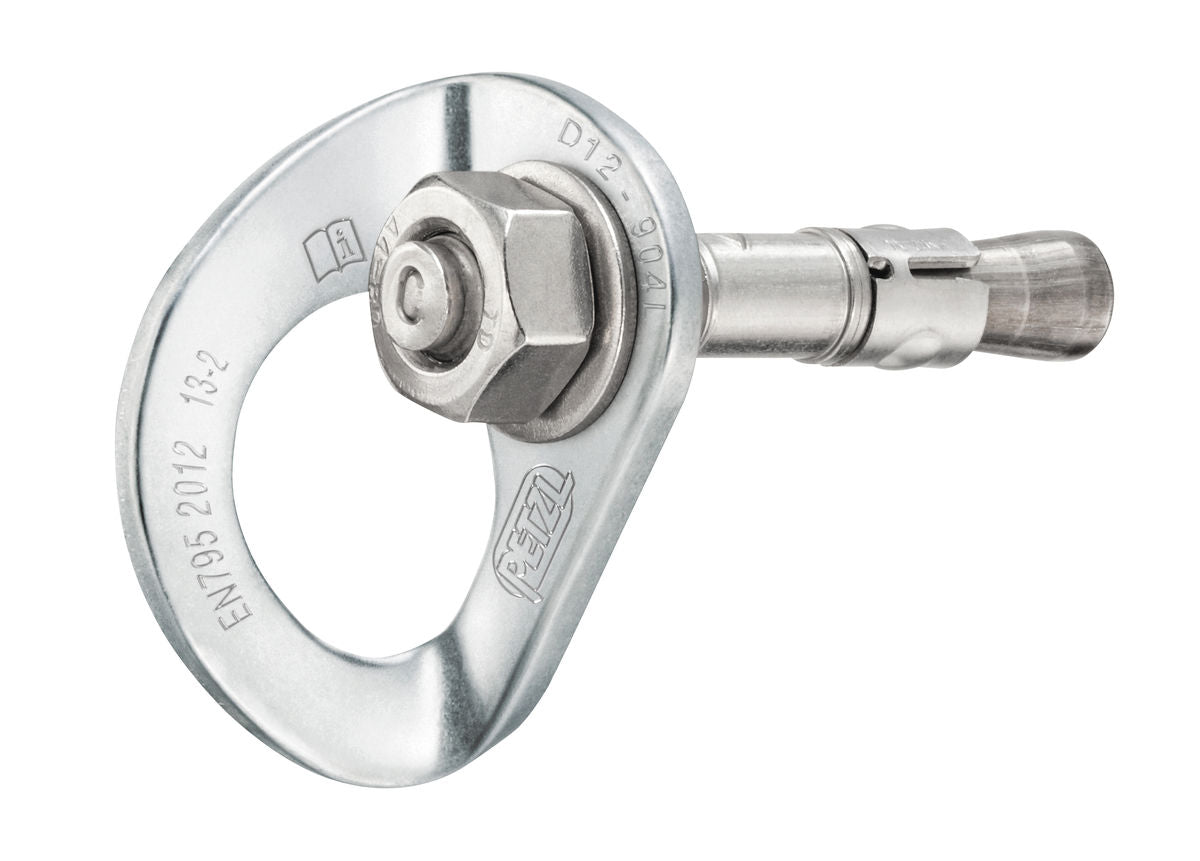

High Corrosion Resistance stainless steel anchor, made up of a COEUR HCR hanger, a 12 mm diameter bolt, and a nut, and is designed for use in corrosive environments, including coastal environments...
- Complete and durable assembly:
- comprised of a COEUR HCR hanger, a 12 mm diameter bolt, and a nut
- HCR 904 (High Corrosion Resistance) stainless steel, designed for corrosive environments, including coastal environments...
- hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Easy to clip:
- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
- Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
Specifications
- Material(s): 904 HCR (High Corrosion Resistance) stainless steel
- Certification(s): EN 959
SKUs
| SKUs |
P36BH 12 |
| Diameter |
12 mm |
| Total bolt length |
85 mm |
| Weight |
135 g |
| Drilling diameter |
12 mm |
| Shear strength in 50 MPa concrete |
25 kN |
| Pull-out strength in concrete 50 MPa |
18 kN |
