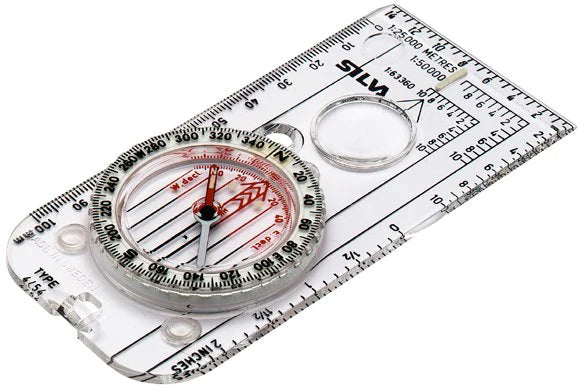

The "full-sized" base plate compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier's or officer's compass. Additional features include measuring scales for positioning (GPS) graduated in mils and degrees (6400/360) magnifying glass and rubber feet for precision map work. Luminous compound that need to be activated by daylight/flashlight etc. Will give light up to 4 hours.
Specifications
Accuracy›± 1° (17.8 mils)
Altitude use›5000m @-15 °C
Clinometer›No Declination adjustment›
Declination scale inside capsule Graduation›6400° / 360° (360° inside the capsule) 6300° 360°
Illumination›4 hours after activation in light
Impact resistance›30g in XYZ directions and free fall from 1.5 m height into gravel
Luminous compound›Tritium compound 80 mCi
Magnifying lens›Yes
Material›Acrylic
Patented red/black N/S lines in capsule›Yes
Resolution degrees / mils›2 / 50
Scales›mm inch
Settling time from 90° angle to complete rest›5 sec
Settling time from 90° angle within ± 3°›2.7 sec
Sighting System›No
Silicon friction feet›Yes Size›126 x 60 x 10 mm
Temperature operating range›-40 to +60 °C
Type of compass›Silva 1-2-3 System baseplate compass
UTM position plotting scales (Romer scales)›1:25k 1:40k 1:50k
Water resistance›IP68 - (more than 100 m)
Weight›36g
