Rigging plate
Available in three sizes, the PAW rigging plate can be used to organize a workstation and to set up multi-anchor systems. The hole design allows ropes or slings to be threaded for direct connection. Made of forged aluminum, it offers an excellent strength-to-weight ratio.
- For easy organization of the workstation and setup of multi-anchor systems:
- 19 mm holes allow the locking sleeves of most carabiners to pass through, enabling the carabiner to be rotated
- hole design allows ropes or slings to be threaded for direct connection.
- main attachment hole accepts up to three carabiners
- the odd number of attachment holes enables the system to be centered and balanced
- up to three users can be connected at the same time
- Durability:
- made of forged aluminum for an excellent strength-to-weight ratio
- durable markings, thanks to the recessed area in the center of the plate

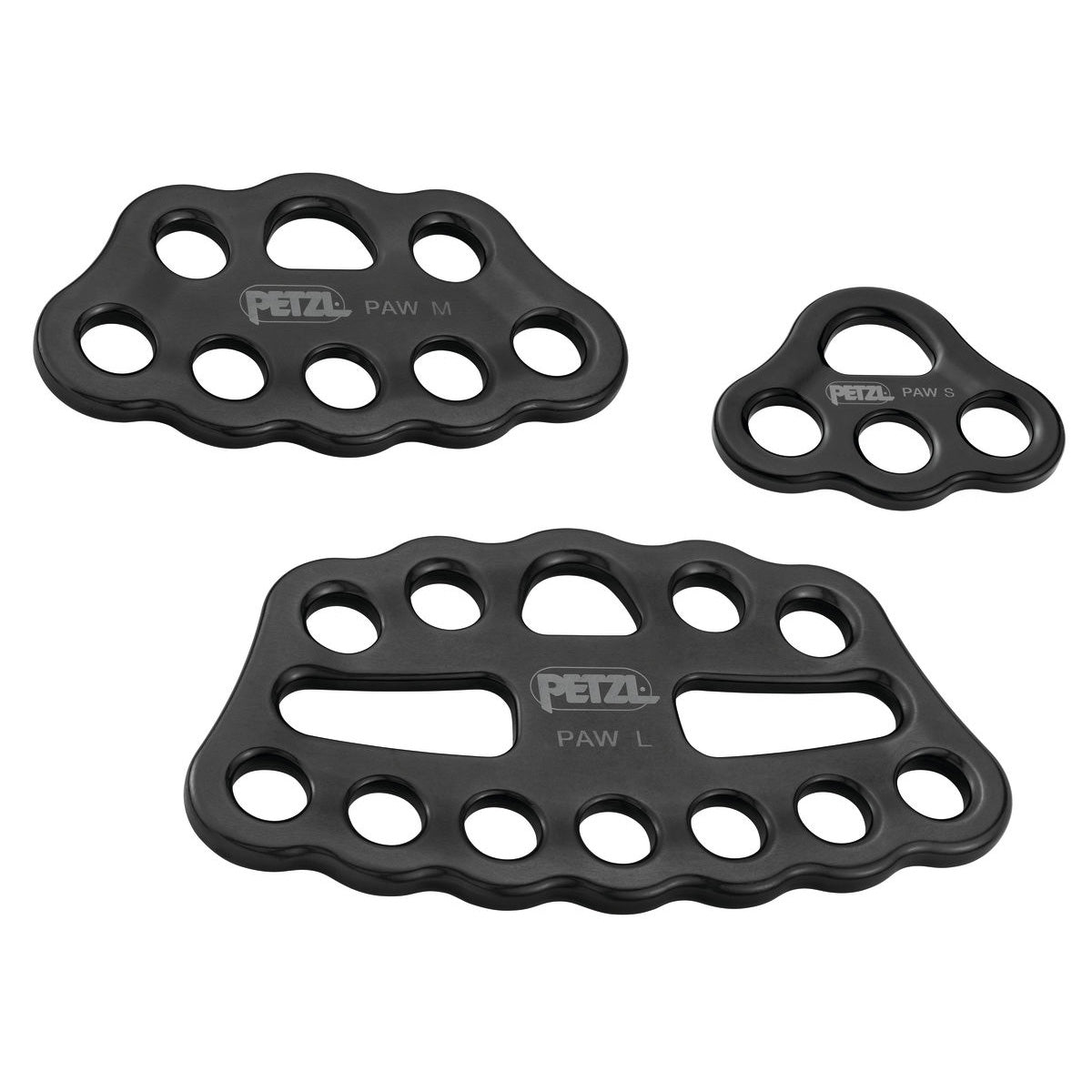

- Available in three sizes
- Two wide auxiliary attachment holes (size L only), compatible with the CONNEXION FIXE and CONNEXION VARIO anchor straps.
Specifications
- Material(s): Aluminium
- Certification(s): CE, NFPA 1983 General Use
|
SKUs
|
G063AA01
|
G063BA01
|
G063CA01
|
|
Size
|

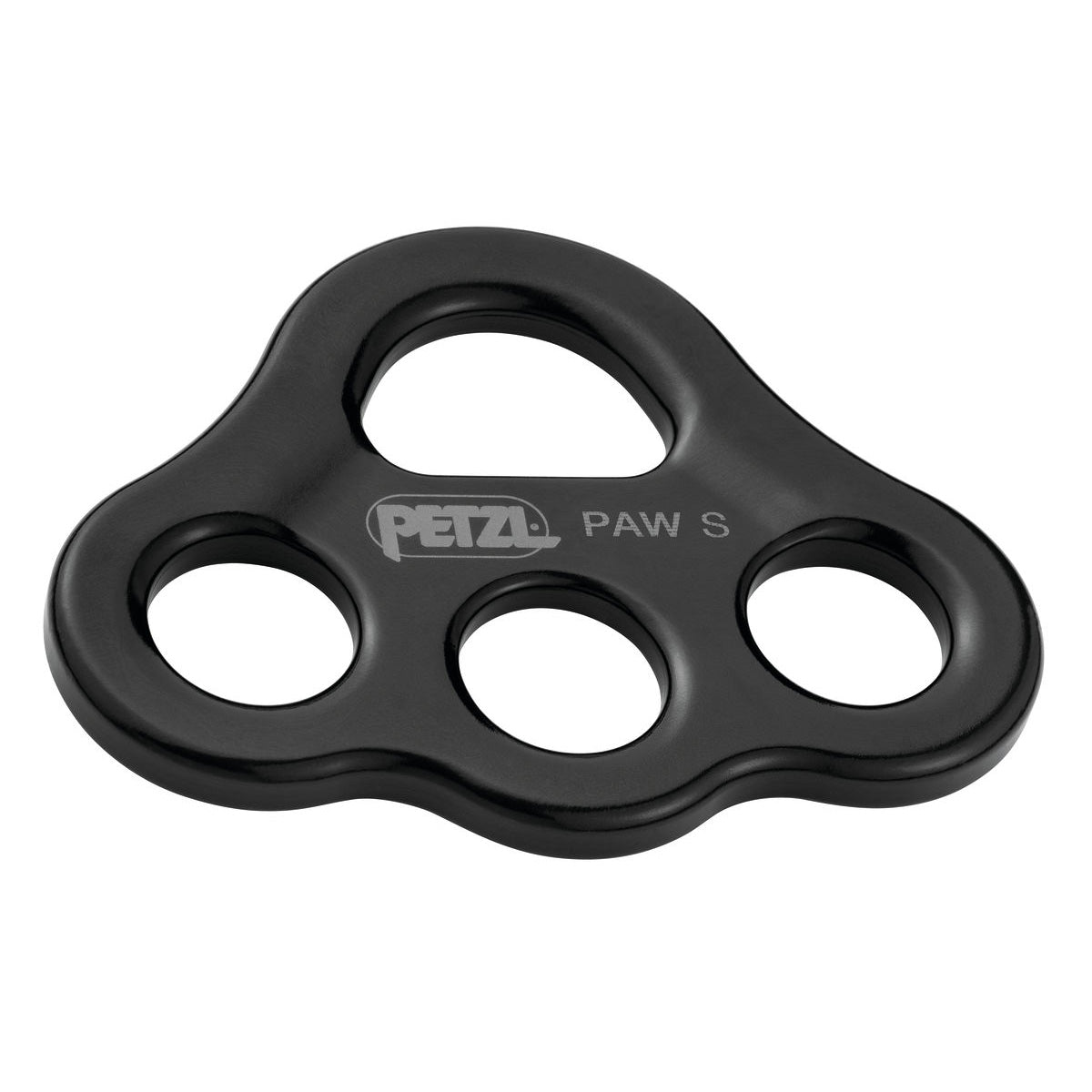

S
|

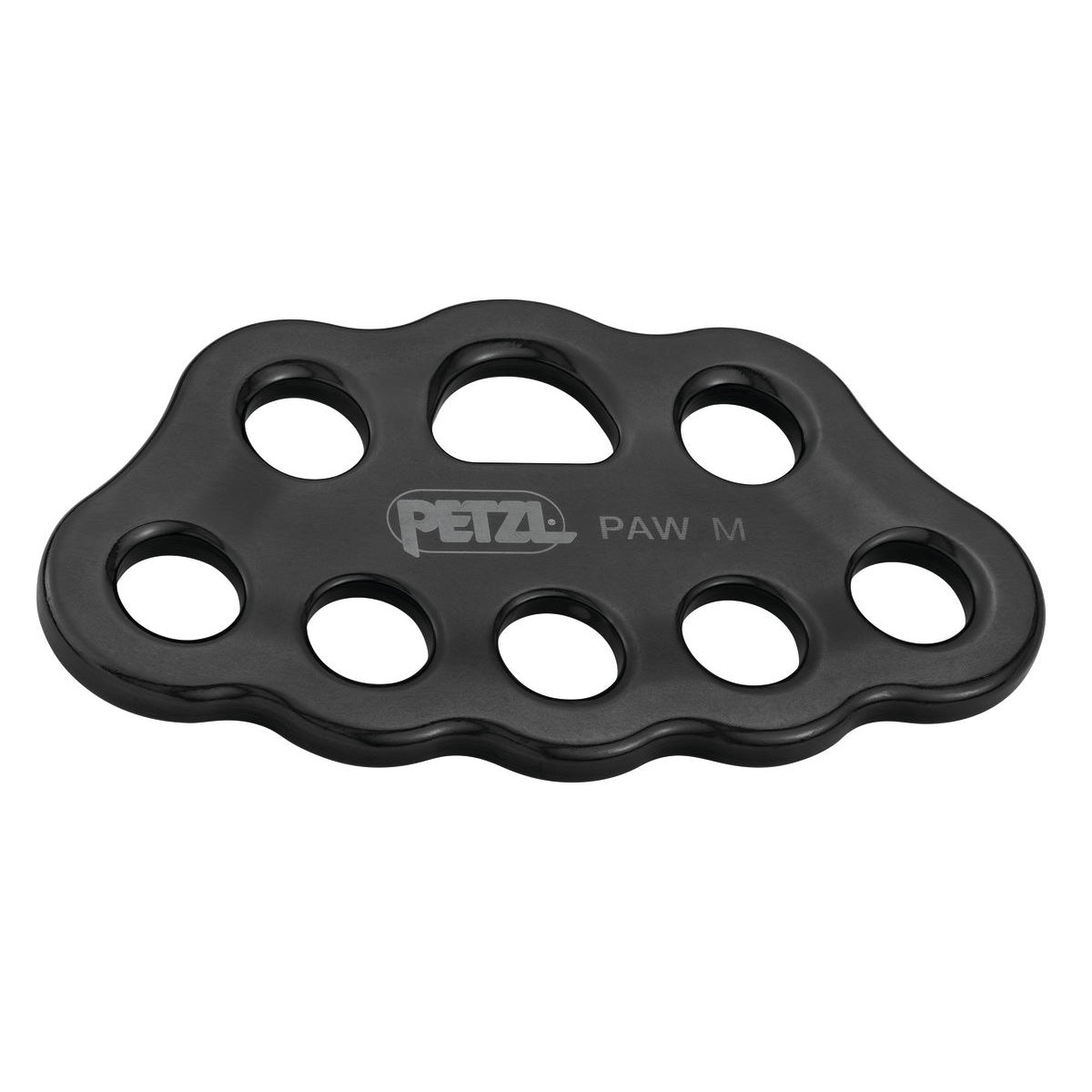

M
|

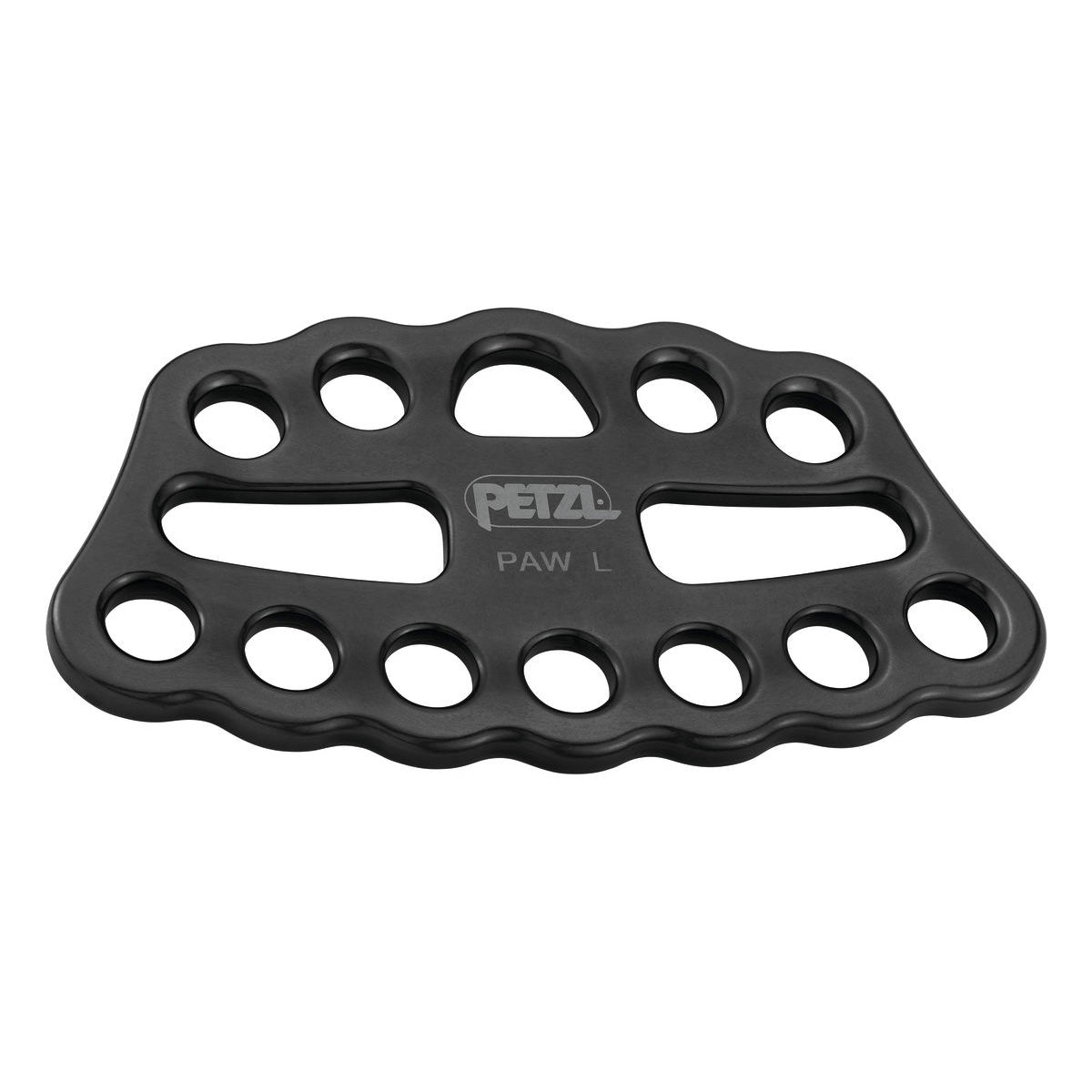

L
|
|
Colour(s)
|
Black
|
Black
|
Black
|
|
Weight
|
60 g
|
180 g
|
350 g
|
|
Breaking Strength
|
36 kN
|
45 kN
|
50 kN
|
