MINIMAL WEIGHT, MAXIMUM PROTECTION.
An extremely compact, lightweight and yet strong, true HMS shape carabiner that is ideally suited to belaying and rigging. Use of an extra-short gate means it can take two clove hitches with ease.
FEATURES
Round, durable and generous rope bearing surface
Rope friendly (larger bend radius) and smooth belaying
True HMS shape
Allows the use of an Italian Hitch
Slim and tapering nose
Good for connecting to textiles
Extra short gate
Allows more working space inside the carabiner
Three gate options
Available with a screwgate, Locksafe or Kwiklock gate
LOCKING GATE TYPES
Screwgate
Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.
Kwiklock
Auto-locking gate requiring two distinct actions to open.
Locksafe
Auto-locking gate requiring three distinct actions to open.
Durolock
Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).
Kwiklock ANSI
Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Locksafe ANSI
Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
TECH SPECS
| Product Name |
Product Code |
Dimensions |
Weight |
MBS (Major Axis) |
MBS (Minor Axis) |
MBS (Gate Open) |
Gate Opening |
Certification |

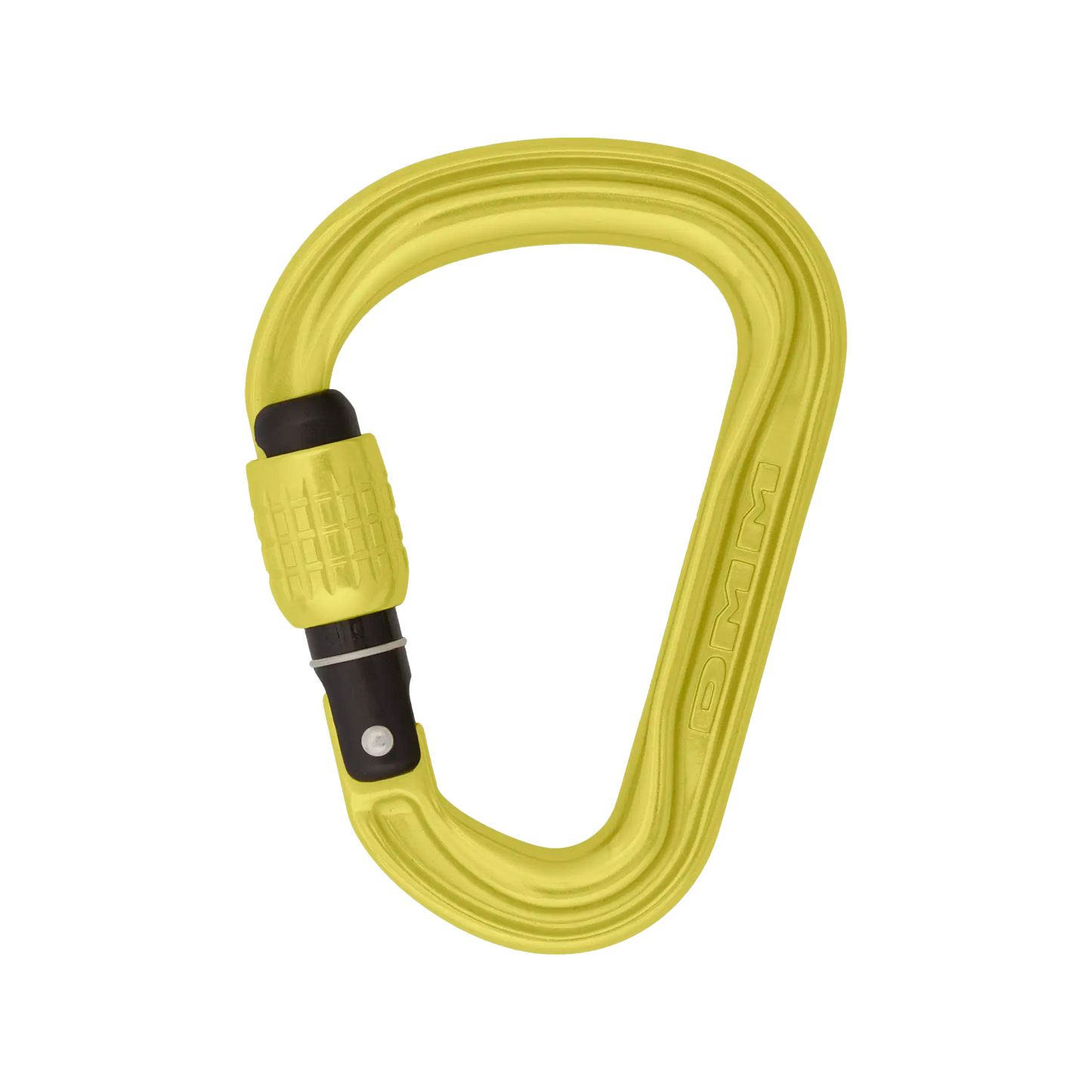

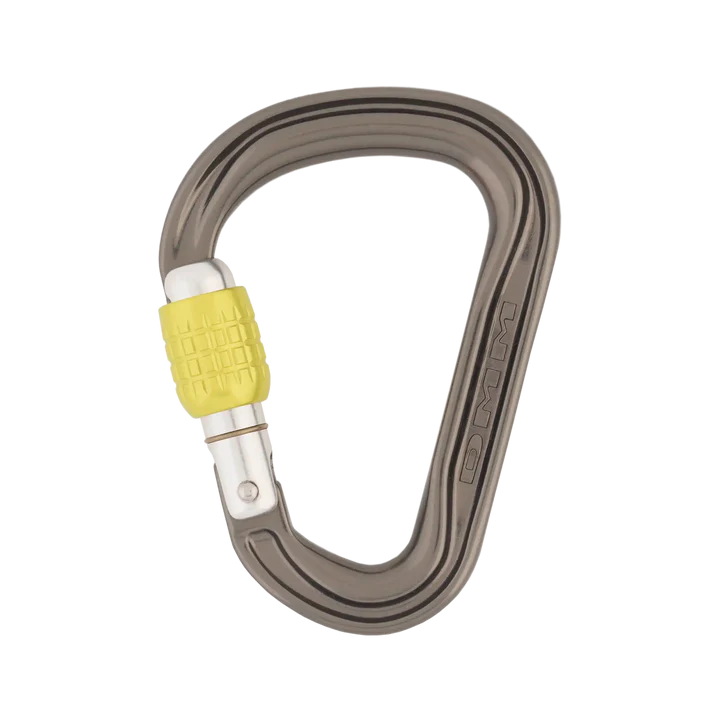

| Phantom HMS Screwgate Lime |
A572LG |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |

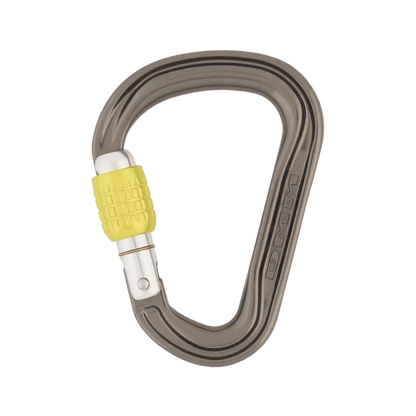

| Phantom HMS Screwgate Titanium |
A572 |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |

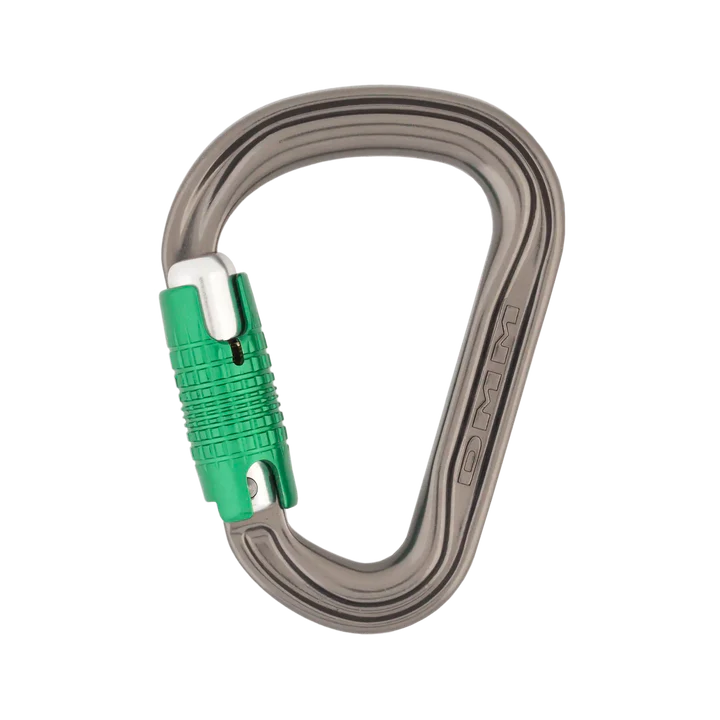

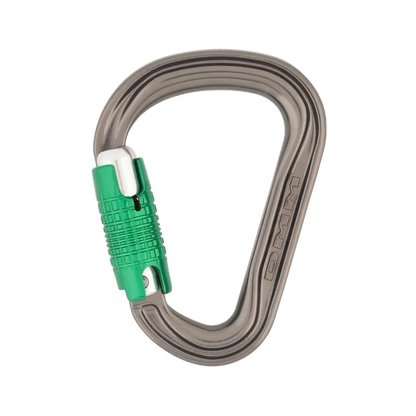

| Phantom HMS Kwiklock Titanium |
A573 |
71 x 96mm |
61g |
25kN |
9kN |
7kN |
19mm |
EN362:2004 B
EN12275:2013 B/H |

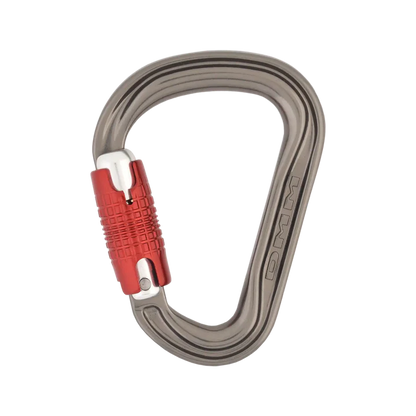

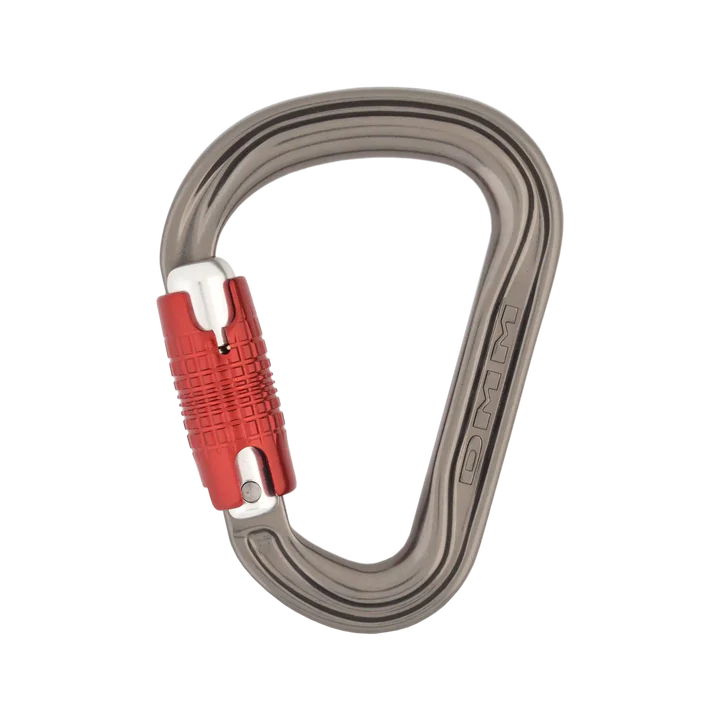

| Phantom HMS Locksafe Titanium |
A577 |
71 x 96mm |
62g |
25kN |
9kN |
7kN |
19mm |
EN362:2004 B
EN12275:2013 B/H |

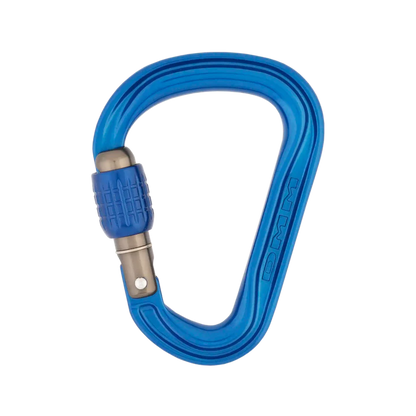

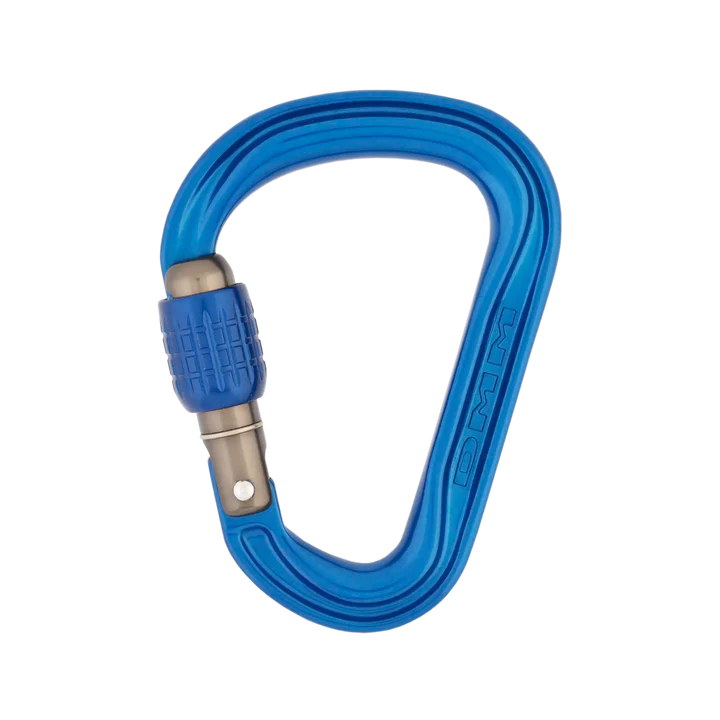

| Phantom HMS Screwgate Blue |
A572BL |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |

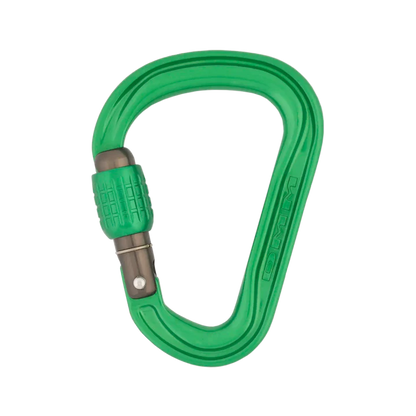

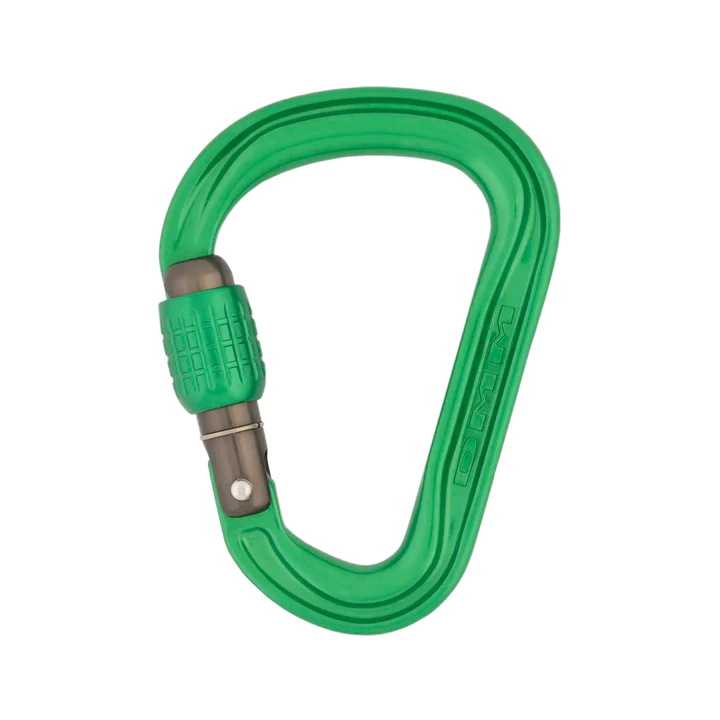

| Phantom HMS Screwgate Green |
A572GR |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |

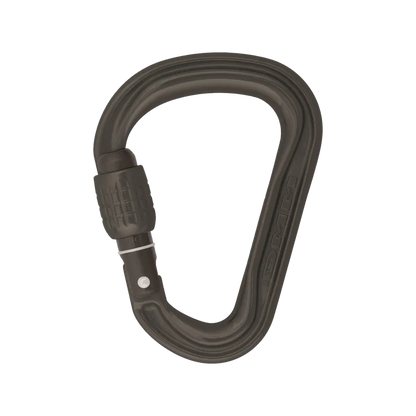

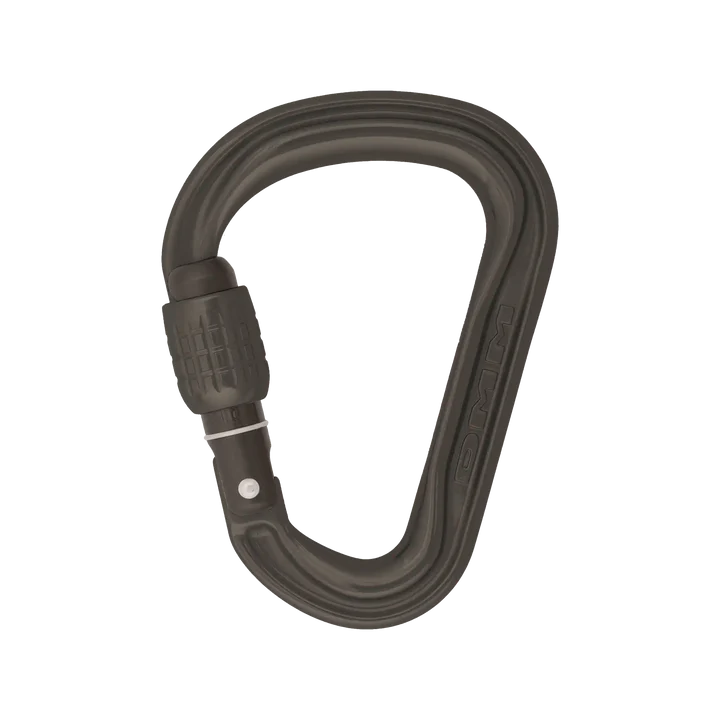

| Phantom HMS Screwgate Matt Grey |
A572MG |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |

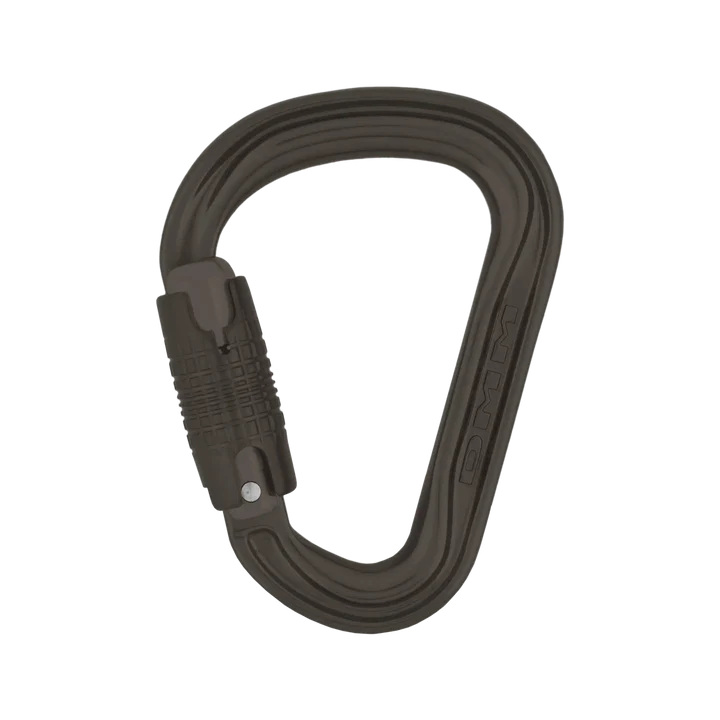

| Phantom HMS Kwiklock Matt Grey |
A573MG |
71 x 96mm |
61g |
25kN |
9kN |
7kN |
19mm |
EN362:2004 B
EN12275:2013 B/H |

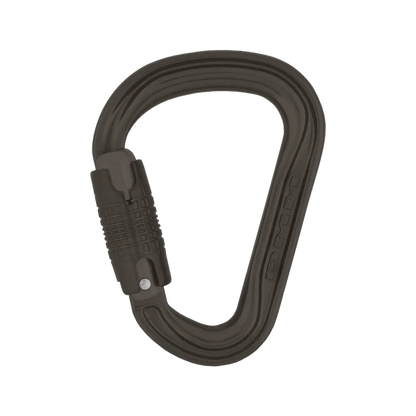

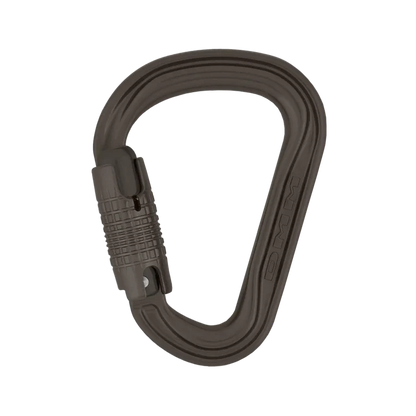

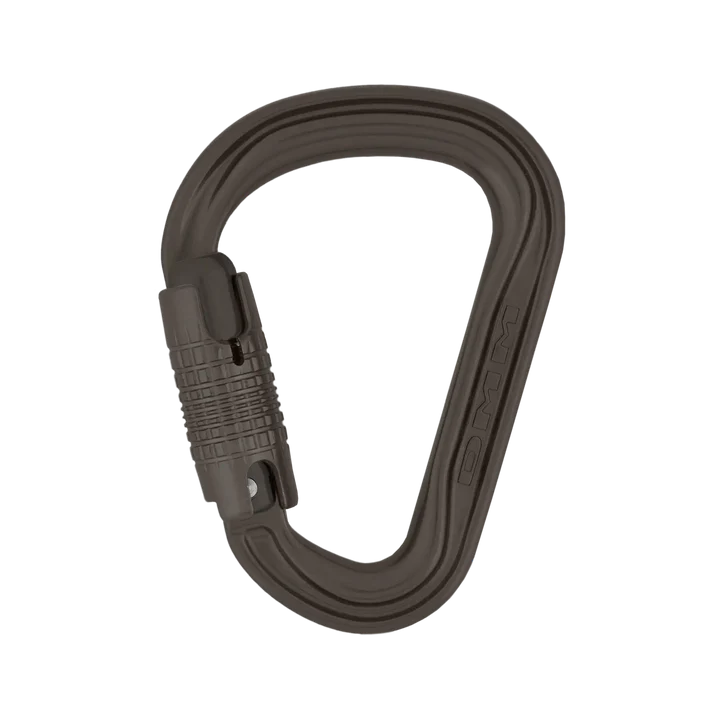

| Phantom HMS Locksafe Matt Grey |
A577MG |
71 x 96mm |
62g |
25kN |
9kN |
7kN |
19mm |
EN362:2004 B
EN12275:2013 B/H |

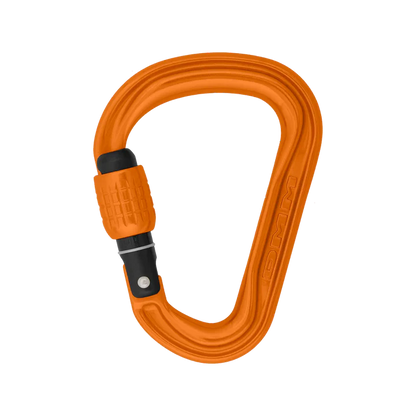

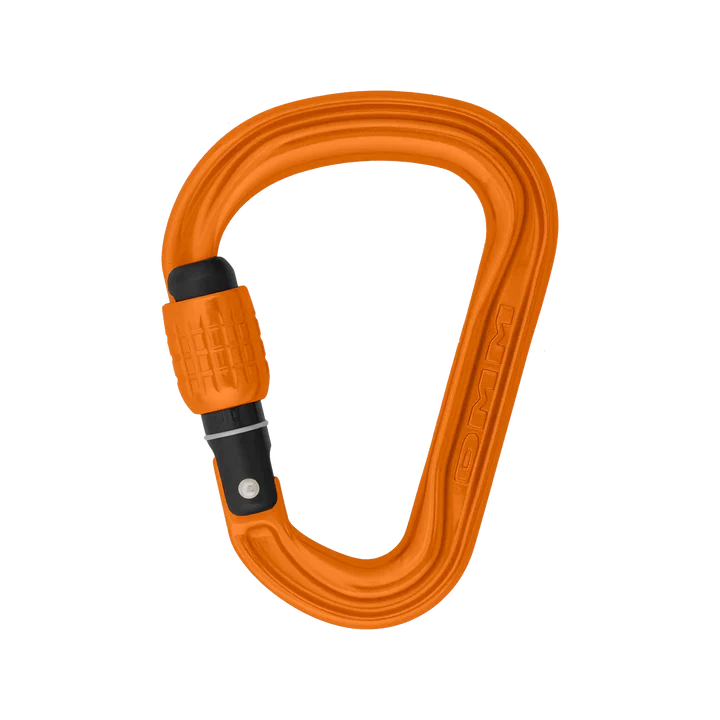

| Phantom HMS Screwgate Orange |
A572OR |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |

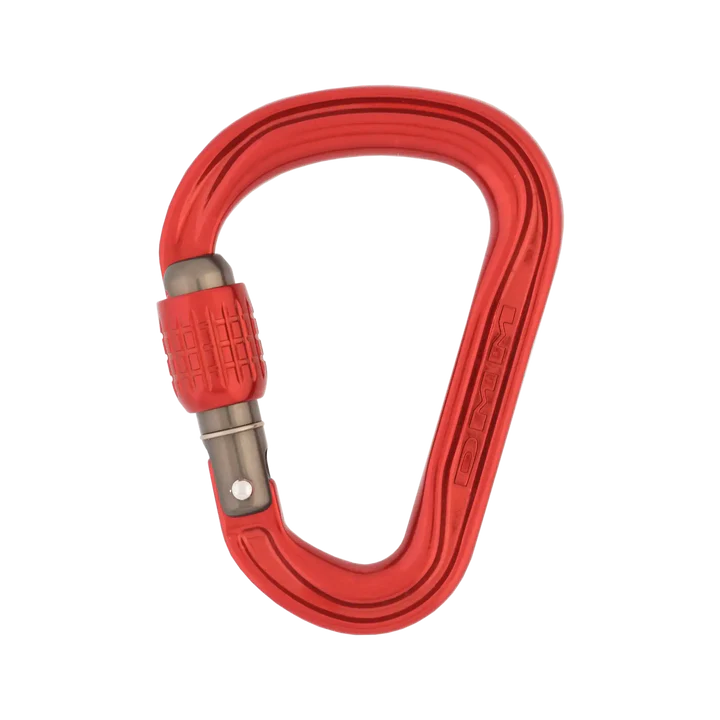

| Phantom HMS Screwgate Red |
A572RD |
71 x 96mm |
56g |
25kN |
9kN |
7kN |
20mm |
EN362:2004 B
EN12275:2013 B/H |
