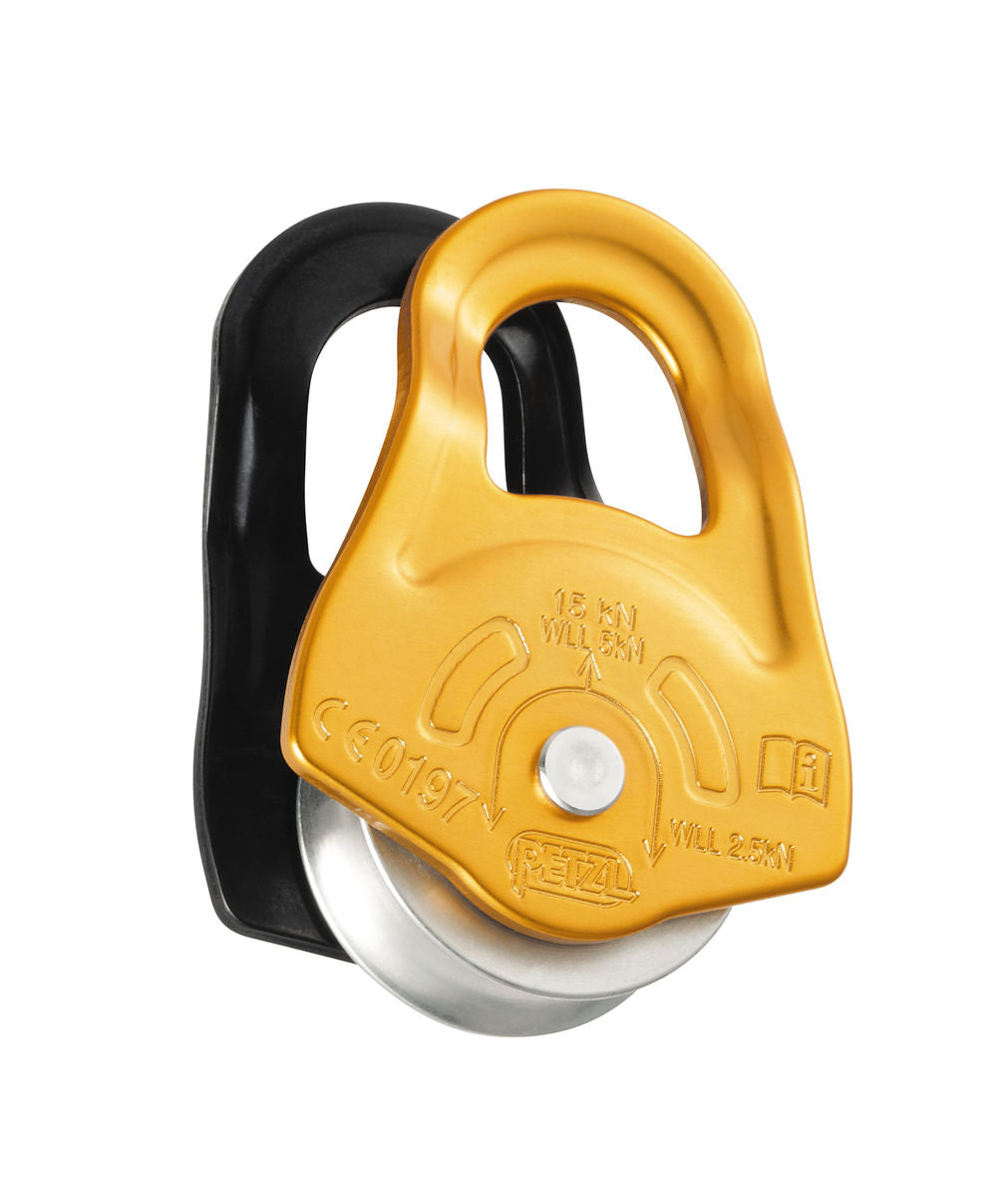

Compact pulley with swinging side plates
The PARTNER pulley is compact and light, yet ensures excellent efficiency thanks to its aluminum sheave mounted on sealed ball bearings.
- Extremely lightweight and ultra-compact pulley
- Quick and easy installation due to the swinging side plates
- Sheave mounted on sealed ball bearings for excellent efficiency
Specifications
- Material(s): aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UIAA
SKUs
| SKUs |
P52A |
| Weight |
56 g |
| Min. rope diameter |
7 mm |
| Max. rope diameter |
11 mm |
| Sheave diameter |
25 mm |
| Efficiency |
91 % |
| Working load |
5 kN |
| Working load |
on one rope strand: 2.5 kN |
| Breaking strength |
15 kN |
