Ultra-light asymmetric carabiner
The compact Sm'D asymmetrical aluminum carabiner is recommended for workers at height looking to reduce weight to a minimum. D shape makes it especially suitable for attaching devices. It is available in two locking systems (automatic TRIACT-LOCK system or manual SCREW-LOCK system), or without a locking system.
Detailed description
- D shape is especially suitable for attaching devices
- Compact aluminium carabiner, for workers at height looking to reduce weight to a minimum
- Easier handling:

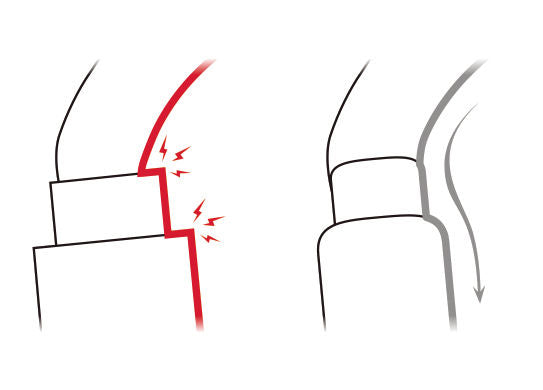

- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

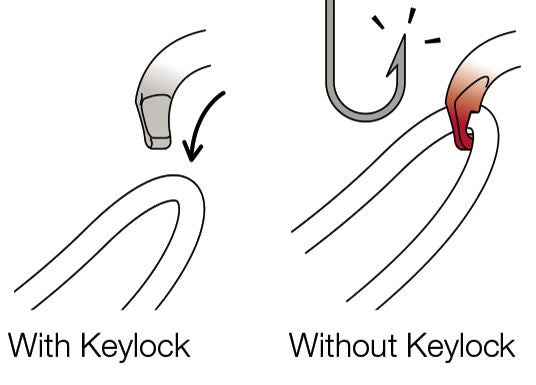

- Keylock system to avoid any involuntary snagging of the carabiner
- H cross-section:
- ensures an optimal strength/weight ratio
- protects markings from abrasion

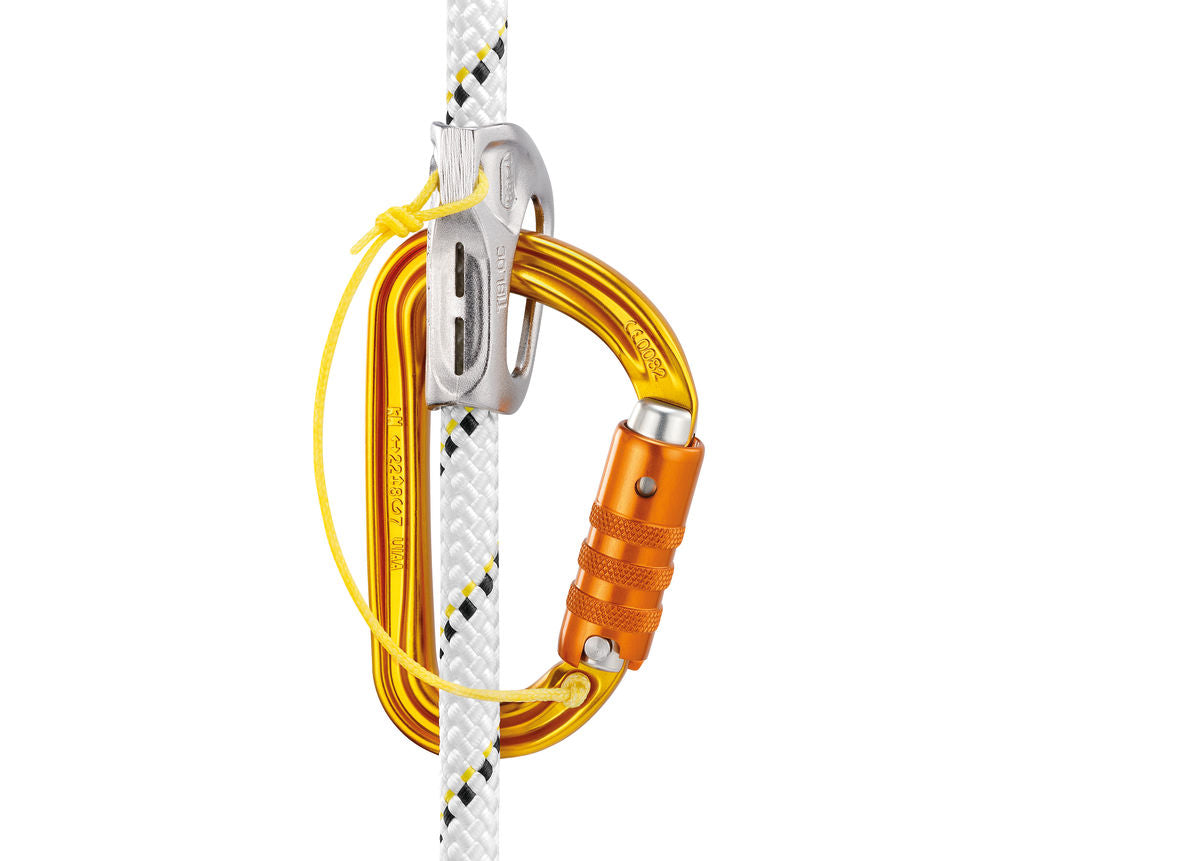

- Hole for connecting TIBLOC or MICRO TRAXION type devices, limiting the risk of losing them
- Two locking systems available:

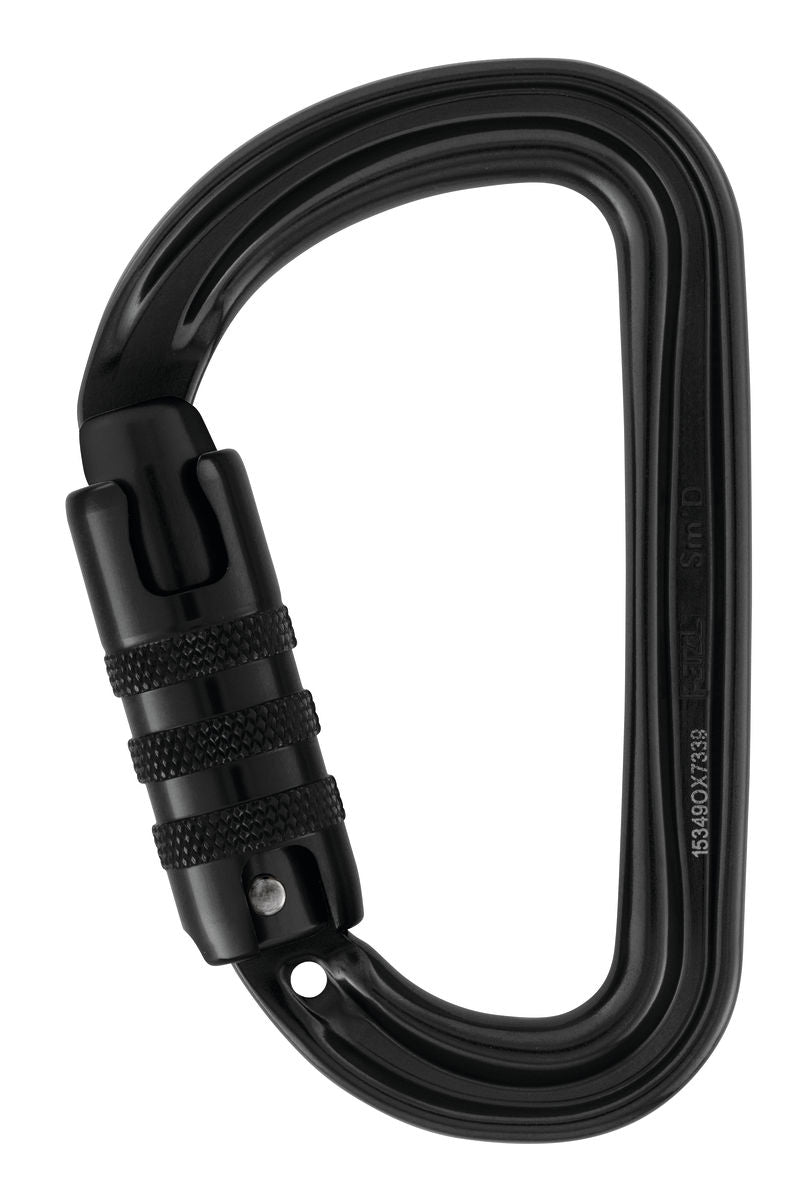

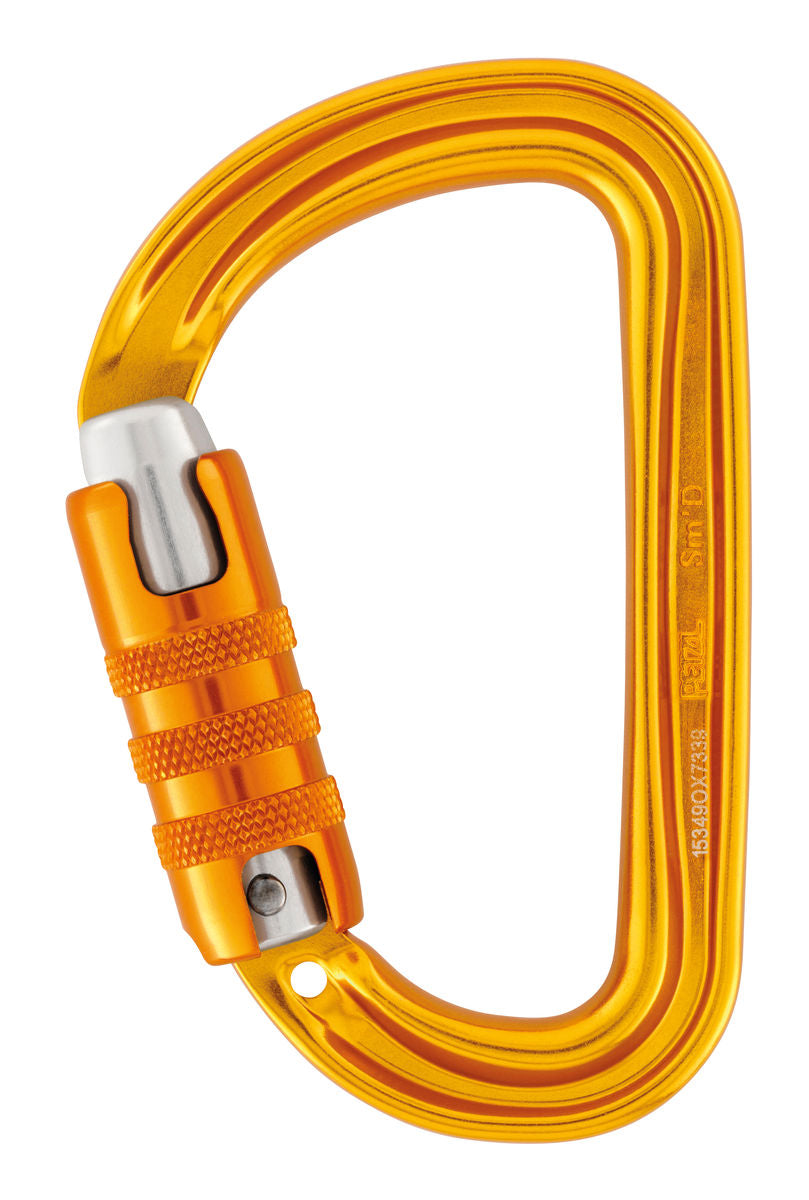

- TRIACT-LOCK: automatic locking with triple-action gate opening

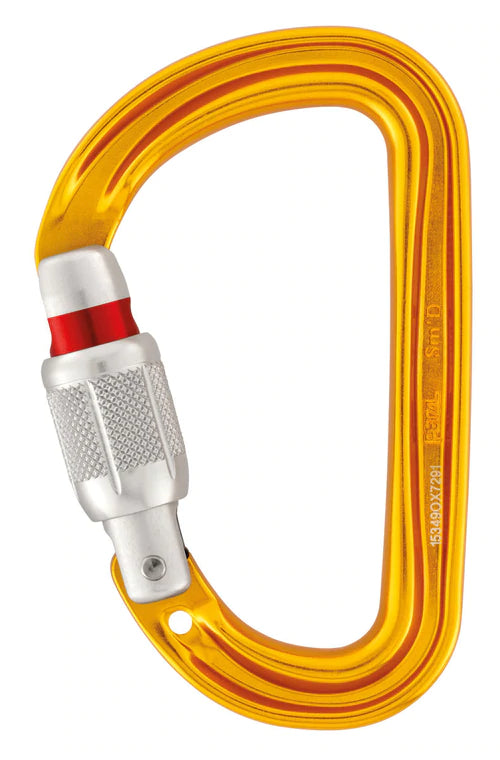

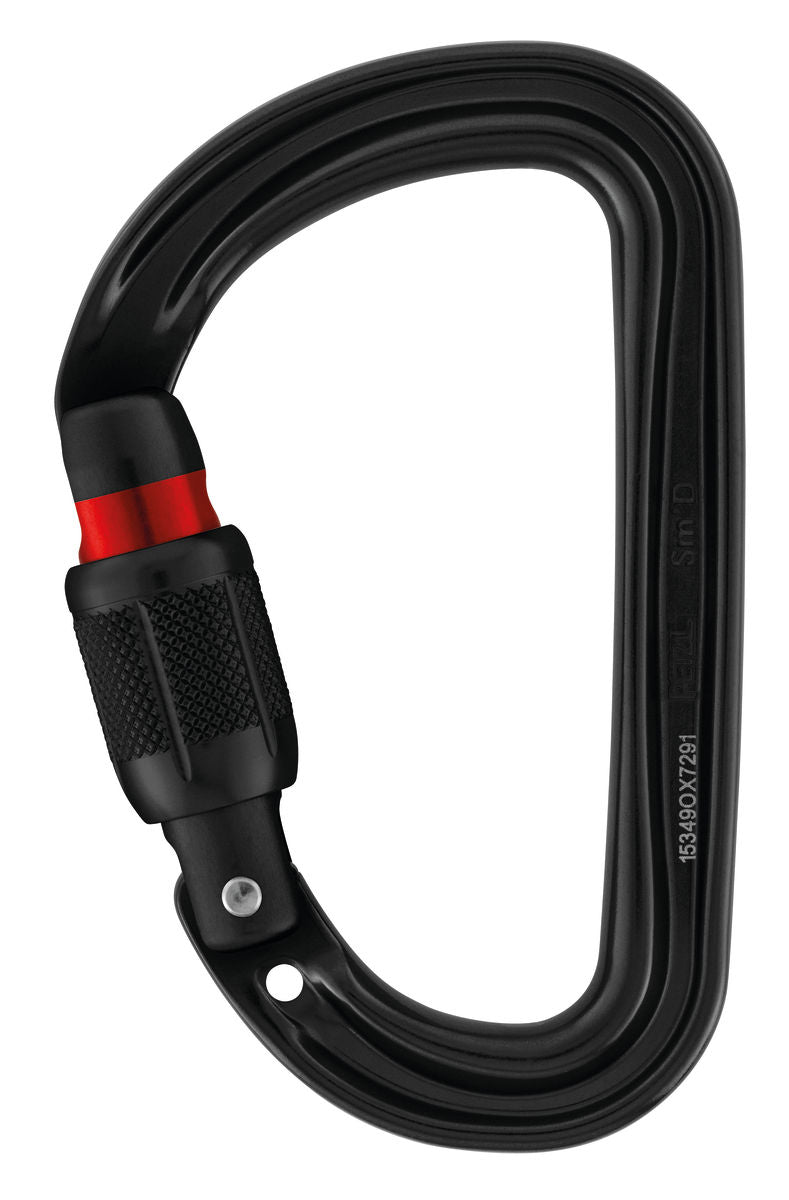

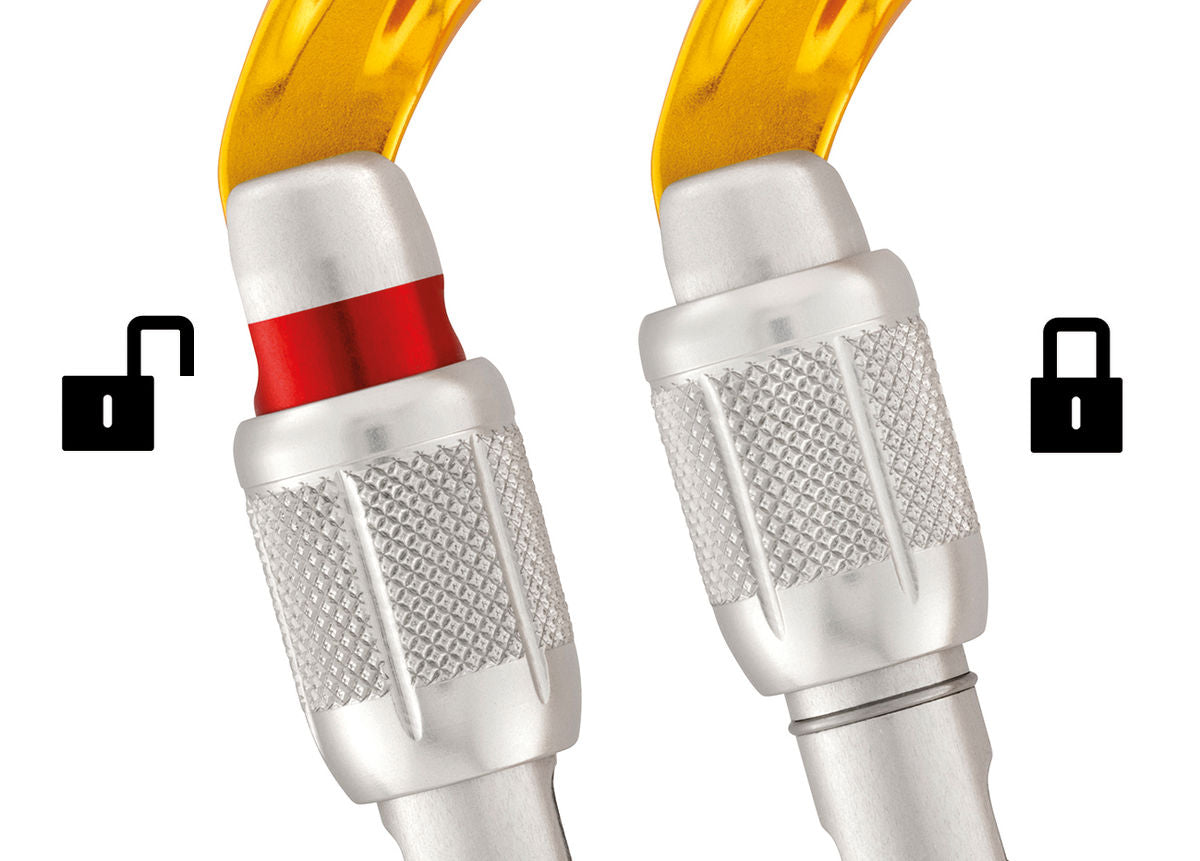

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

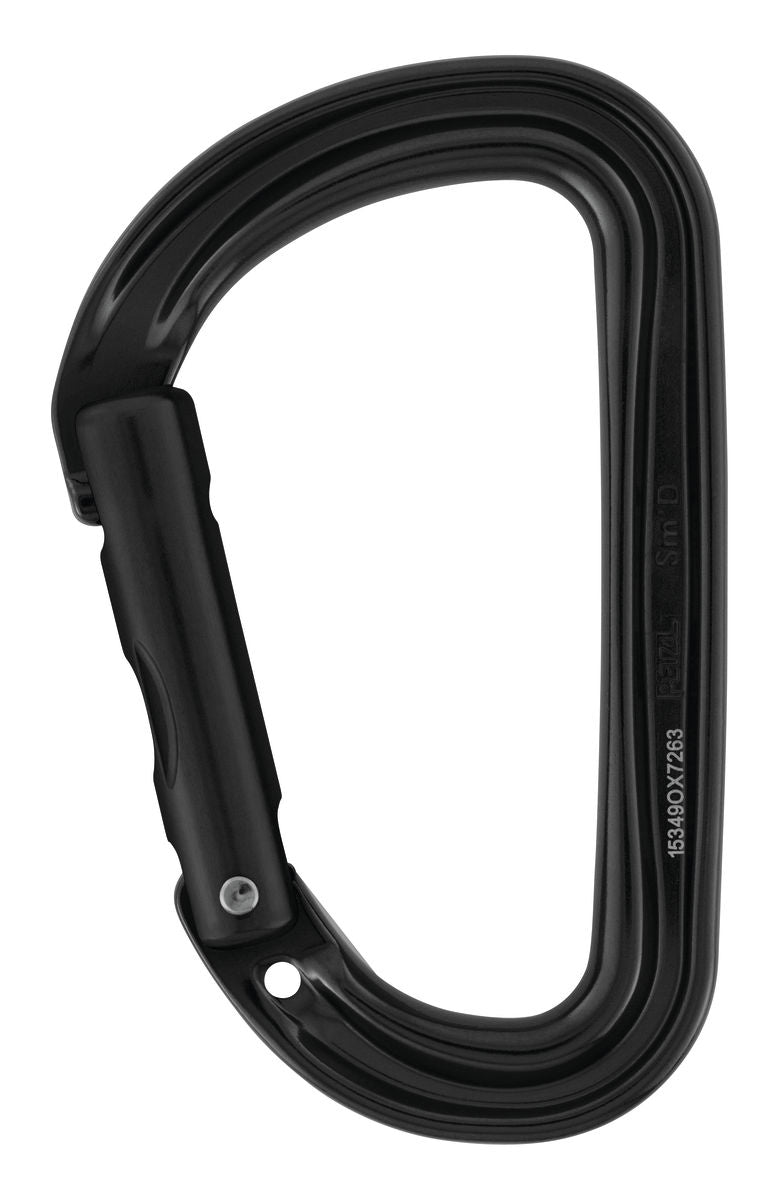

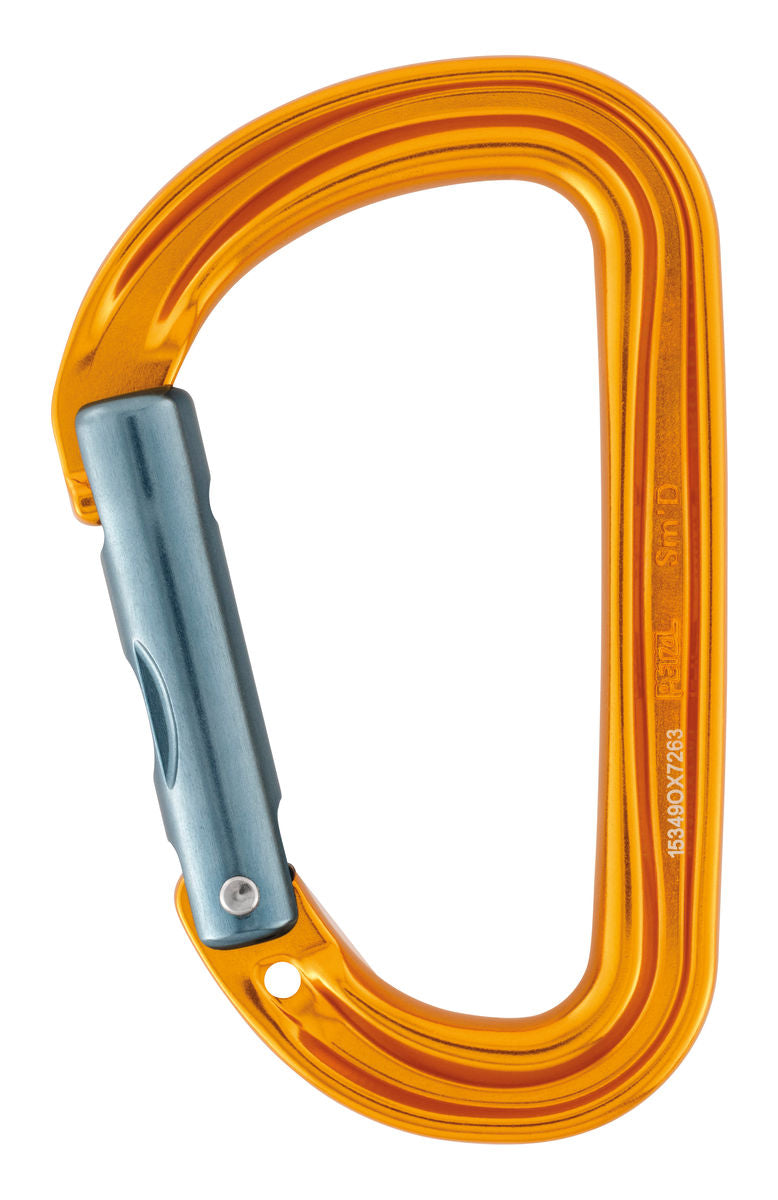

- Available without locking system, for easy clipping during progression using climbing techniques
Specifications
Material(s): aluminum
| SKUs |
M39A TL |
M39A SL |
M39A S |
| Weight |
55 g |
45 g |
40 g |
| Locking system |
TRIACT-LOCK |
SCREW-LOCK |
|
| Certification(s) |
CE EN 362, CE EN 12275 type B, EAC |
CE EN 362, CE EN 12275 type B, EAC |
|
| Colour(s) |
yellow |
yellow |
yellow |
| Major axis strength |
23 kN |
23 kN |
23 kN |
| Minor axis strength |
8 kN |
8 kN |
8 kN |
| Open gate strength |
7 kN |
7 kN |
7 kN |
| Gate opening |
18 mm |
20 mm |
23 mm |
|
|
|
|
| SKUs |
M39A TLN |
M39A SLN |
M39A SN |
| Weight |
55 g |
45 g |
40 g |
| Locking system |
TRIACT-LOCK |
SCREW-LOCK |
|
| Certification(s) |
CE EN 362, CE EN 12275 type B, EAC |
CE EN 362, CE EN 12275 type B, EAC |
|
| Coloor(s) |
black |
black |
black |
| Major axis strength |
23 kN |
23 kN |
23 kN |
| Minor axis strength |
8 kN |
8 kN |
8 kN |
| Open gate strength |
7 kN |
7 kN |
7 kN |
| Gate opening |
18 mm |
20 mm |
23 mm |
