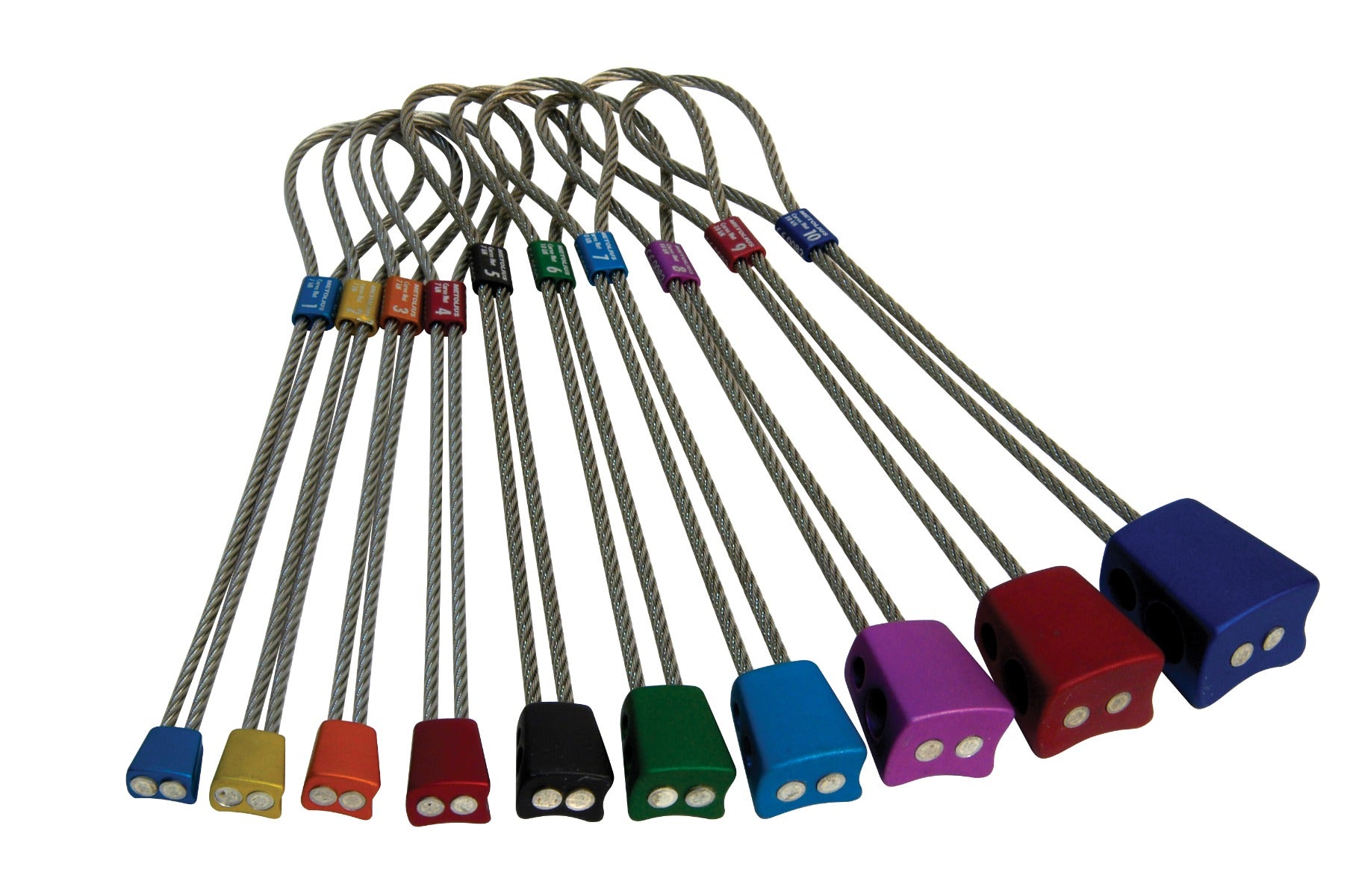

The new Ultralight Asymmetric Curve Nuts have an asymmetric taper for greater stability in flaring placements. They are awesome for pin scars and the straight-sided taper makes it easy to judge placement quality. Also, they are 30% lighter than the competition, have anodized heads, and color-coded collars to match our cam colors. They are the perfect passive pro for anyone looking to lighten their trad rack and, in addition our smaller sizes, now have stiffer cables to make placements that much easier.
- Sizes: #1 - 10 available individually or as a full set
- CE/UIAA certified
- Hand built, inspected and individually proof tested in Bend, Oregon
| SIZE |
RANGE |
STRENGTH |
WEIGHT |
1
Blue |
0.36 - 0.48"
9.1 - 12.2 mm |
1575 lbf
7 kN |
0.8 oz.
23 g |
2
Yellow |
0.40 - 0.50"
10.2 - 12.8 mm |
1575 lbf
7 kN |
0.8 oz.
23 g |
3
Orange |
0.45 - 0.56"
11.5 - 14.3 mm |
1575 lbf
7 kN |
0.8 oz.
24 g |
4
Red |
0.51 - 0.63"
12.9 - 16.1 mm |
1575 lbf
7 kN |
0.9 oz.
26 g |
5
Black |
0.57 - 0.71"
14.4 - 18.0 mm |
1575 lbf
7 kN |
1.0 oz.
30 g |
6
Green |
0.63 - 0.79"
16.1 - 20.1 mm |
2250 lbf
10 kN |
1.0 oz.
31 g |
7
Light Blue |
0.71 - 0.89"
18.0 - 22.6 mm |
2250 lbf
10 kN |
1.1 oz.
34 g |
8
Light Purple |
0.80 - 1.00"
20.2 - 25.3 mm |
2250 lbf
10 kN |
1.3 oz.
39 g |
9
Maroon |
0.89 - 1.11"
22.6 - 28.3 mm |
2250 lbf
10 kN |
1.6 oz.
46 g |
10
Dark Blue |
1.00 - 1.25"
25.3 - 31.7 mm |
2250 lbf
10 kN |
1.9 oz.
55 g |
*Dimensions are depth and width at the top (widest part) of the nut.
